Name: High Pressure Annular BOP Packing Element
Brand: Hebei Pantu Machinery Equipment Co., Ltd
SKU: 13 5/8"
Price: 30000 USD
Availability: InStock

High Pressure Annular BOP Packing Element

1 set

MOQ

USD 30000 set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Annular BOP Packing Element

Size: 13 5/8"

Rated Working Pressure: 10000 Psi

Rubber: Spherical Rubber

Standard: API 16A

Feature: High Pressure

Highlight:

High Pressure Annular BOP Packing Element

API 16A Annular BOP Packing Element

High Pressure BOP Packing Element

Basic Infomation

Place of Origin: China

Brand Name: Hebei Pantu

Certification: API 16A

Model Number: 13 5/8"

Payment & Shipping Terms

Packaging Details: Iron Case

Delivery Time: 7 work days

Payment Terms: T/T

Supply Ability: 5 sets per 3 months

Gallery

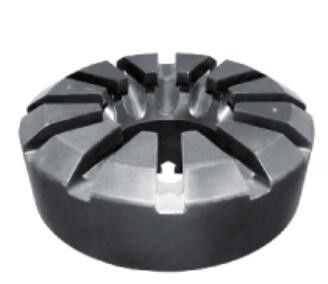

High Pressure Annular BOP Packing Element

Product Description

13 5/8"-10,000 Psi Annular BOP Packing Element High Pressure

Annular BOP Packing Element Working Principle:

When wells must be sealed in case of kicks high pressure oil from control systems enters into close-cavity under the piston from the housing oil outlet, to promote the plastic core moving upward along the ball surface, so that bearing tendons move closer to each other to move the rubber between them to the center of wellhead to seal drilling tools or fully seal wellhead. In the opening, hydraulic pressure oil enters into open cavity above the piston from the housing oul inlet, to push the piston moving downwards, so that the plastic will reset with its elasticity, wellhead will be open.

Annular BOP Packing Element Parameters

working pressure MPa(psi)	Bore mm(in)
working pressure MPa(psi)	179(7 1/16")	228(9")	279(11")	346(13 5/8")	527(20 3/4")	540(21 1/4")	750(29 1/2")
70(10000)	√		√	√
35(5000)	√	√	√	√		√
21(3000)			√	√	√
14(2000)						√
4(500)							√

High Pressure Annular BOP Packing Element 0

Bop Packing unit features

1. Standards: API Spec.16A Standard

2. All the parts of Annular BOP Packing Element are original or interchangeable

3. Annular BOP Packing Element with Reasonable structure, easy operation, long life of plastic core

4. Adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in and shapes, better performance by combining with ran blowout preventer in the use.
