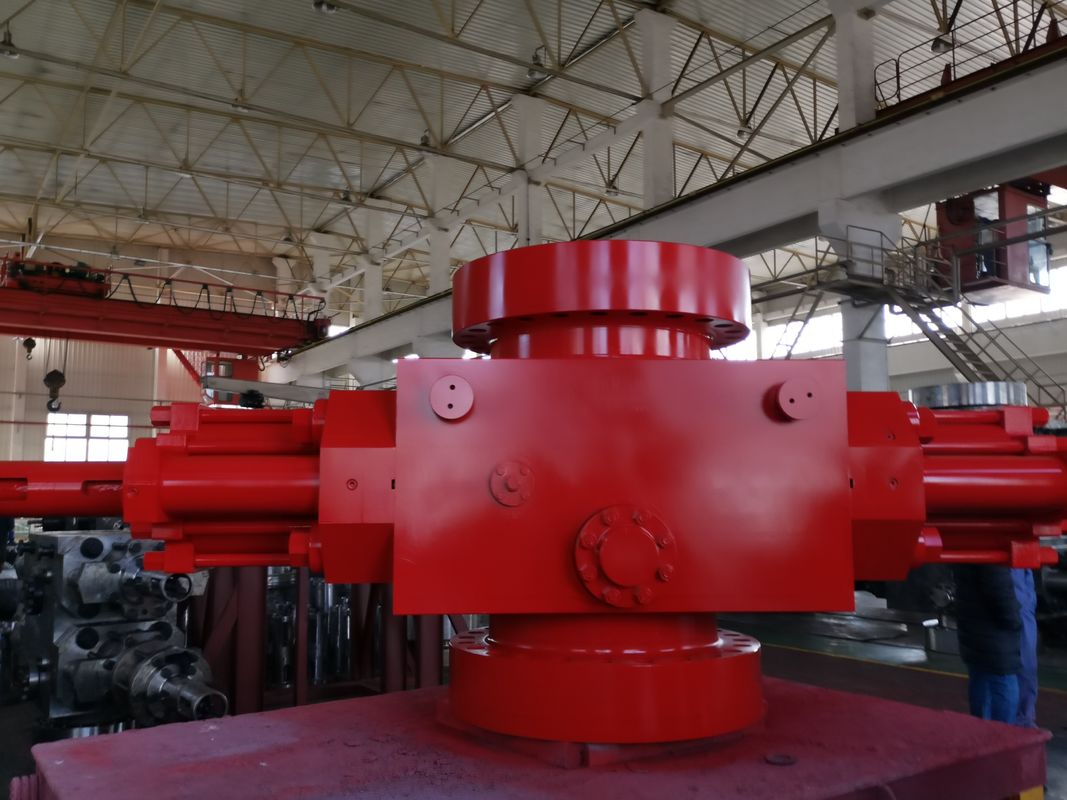

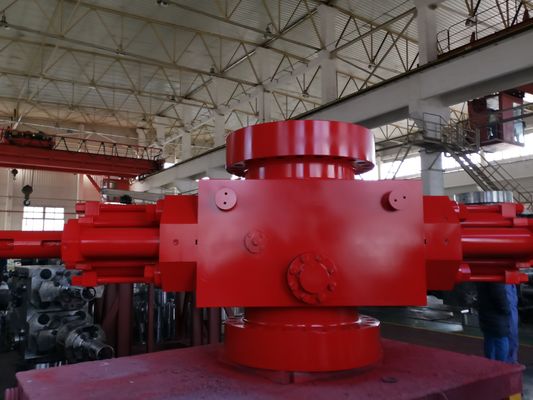

7 1/16" 15000psi Single Ram Blow Up Preventer With Flanged Connection

1 set
MOQ
USD 2500 set
Price
7 1/16" 15000psi Single Ram Blow Up Preventer With Flanged Connection
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Single Ram Blow Up Preventer
Size: 7 1/16"
Pressure: 15000psi
Hydraulic Controlled Rated Working Pressure (MPa/psi): 21/3,000
Other Name: Well Blowout Preventer
Connection: Flanged Connection
Highlight:

15000psi Single Ram Blow Up Preventer

,

Flanged Connection Single Ram Bop

,

7 1/16" Blow Up Preventer

Basic Infomation
Place of Origin: China
Brand Name: Cameron/Shaffer/Rongsheng/Shenkai
Certification: API 16A
Model Number: 7 1/16"-15000psi
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

7 1/16" 15000psi Single Ram Blow Up Preventer With Flanged Connection



Ram BOP Types



1) Pipe Rams
seal the space between the wellbore or blowout preventer and the pipe. When the Pipe Ram closes around the meeting point of the wellbore's diameter and the exterior pipe, fluids cannot pass through any gaps in the area. This prevents liquids from flowing through the annular space but does not obstruct the flow within the drill pipe.
2) Shear Rams.
This blowout preventer closing mechanism utilizes durable, precisely-fitted steel blades to sever the drilling pipes each time the BOP is triggered. Afterwards, it securely seals the wellbore. In the event that other options are exhausted, oilfield operators may utilize the shear rams to regain control of the wellbore's pressure. However, this method should always be the last resort.
An important tip to remember is that the cut pipe remains suspended in the BOP stack after the shear rams have been employed. The drill pipe joint may sustain damage, but the other string will remain undamaged.
Blind Rams are
thick components in a ram-type BOP made of heavy steel. They feature two steel blocks that converge at the center to block the hole where the pipe fits. Please note that these rams don't have space for piping. This ram, also known as the sealing shear ram, is used
when the well lacks
a drill string. When the blowout preventer closes, it can sever the tubing or drill pipe. Additionally, it serves as the last resort in cases where other BOP types fail in regaining pressure control.



(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in the below list)



Item Specification for Oil Rig Blowout Preventer System
Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

7 1/16″

-100000psi

9″-

3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

11″

-10000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

13 5/8″

-10000psi

20 3/4″

-3000psi

21 1/4″

-5000psi

26 3/4”

-3000psi

Bore (mm/in.) 179.4 179.4 179.4 228.6 228.6 279.4 279.4 279.4 346.1 346.1 346.1 527 539.8 679.4
7 1/16 7 1/16 7 1/16 9 9 11 11 11 13 5/8 13 5/8 13 5/8 20 3/4 21 1/4 26 3/4
Rated working pressure (MPa/psi) 21 35 70 21 35 21 35 70 21 35 70 21 35 21
3,000 5,000 10,000 3,000 5,000 3,000 5,000 10,000 3,000 5,000 10,000 3,000 5,000 3,000
Hydrostatic pressure testing pressure (MPa/psi) 31.5 52.5 105 31.5 52.5 31.5 52.5 105 31.5 52.5 105 31.5 70 31.5
4,500 7,500 15,000 4,500 7,500 4,500 7,500 15,000 4,500 7,500 15,000 4,500 10,000 4,500
Hydraulic-controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1218~1522psi
Volume for open one set rams                   36 L
Volume for close one set rams                   40 L
The outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃~121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contact with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard
