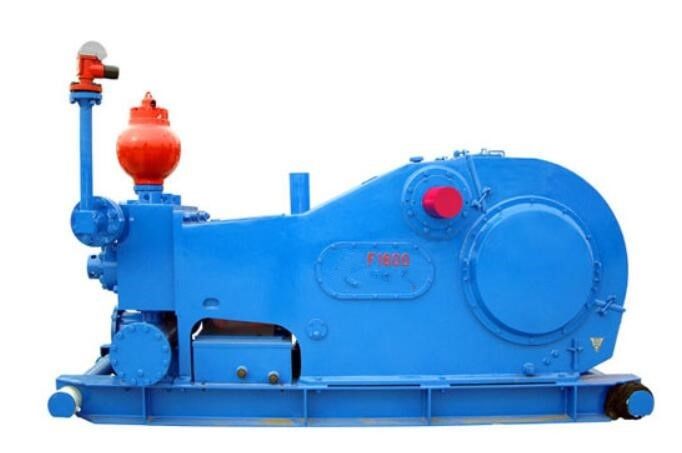

F1600 Drilling Mud Pump API Spec 7K Standard
F1600 Drilling Mud Pump is manufactured under the standard of APlISpec7k, mud pump spare parts at the fluid end are interchangeable with the parts that are in conformity with APl Spec.
The suction pulsation dampener of F1600 Drilling Mud Pump has an advanced structure that is reliable to use and can make the pump realize its best suction performance.
The performance of the F1600 Drilling Mud Pump was greatly improved by the durable fluid end; and examination, mud pump repair, and mud pump maintenance are easier to make due to the independent structure.
Parameters of F1600 Drilling Mud Pump
| Liner Size | in |
7 1/4
|
7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 |
| Discharge Pressure | Mpa |
22.0
|
23.6
|
25.4
|
27.4
|
29.6
|
32.1
|
34.5
|
34.5
|
| psi |
3190
|
3420
|
3684
|
3974 |
4293 |
4655
|
5000
|
5000
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | |||||||
| 130 |
1292
(1733)
|
52.77
(836.4)
|
49.19
(779.6)
|
45.74
(725.0)
|
42.41
(672.2)
|
39.22
(621.6)
|
36.14
(572.8)
|
30.36
(481.2)
|
25.10
(397.8)
|
| 120 |
*1193
(1600)
|
48.71
(772.0)
|
45.41
(719.7)
|
41
(649.8)
|
39.15
(620.5)
|
36.20
(573.7)
|
33.36
(528.7)
|
28.03
(444.2)
|
23.17
(367.2)
|
| 110 |
1093
(1466)
|
44.65
(707.7)
|
41.63
(659.8)
|
38.07
(603.4)
|
35.89
(568.8)
|
33.18
(525.9)
|
30.58
(484.7)
|
25.69
(407.1)
|
21.24
(336.6)
|
| 100 |
994
(1333)
|
40.59
(643.3)
|
37.84
(599.7)
|
35.18
(557.6)
|
32.63
(517.1)
|
30.17
(478.2)
|
27.8
(440.6)
|
23.36
(370.2)
|
19.31
(306.0)
|
| 90 |
895
(1200)
|
36.53
(579.0)
|
34.06
(539.8)
|
31.67
(501.9)
|
29.36
(465.3)
|
27.15
(430.3)
|
25.02
(396.5)
|
21.02
(333.1)
|
13.38
(212.0)
|
| 50 |
497
(666)
|
20.29
(321.6)
|
18.92
(299.8)
|
17.59
(278.8)
|
16.31
(258.5)
|
15.08
(239.0)
|
13.9
(220.3)
|
11.68
(185.1)
|
9.65
(152.9)
|
| 1 |
9.94
(13.3)
|
0.406
(6.43)
|
0.3784
(6.00)
|
0.3518
(5.57)
|
0.3518
(5.57)
|
0.3263
(5.17)
|
0.278
(4.40)
|
0.2336
(3.70)
|
0.1931
(3.06)
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | |||||||||
F1600 Drilling Mud Pump Specification :
Rated input Power: 1193 kW (1600 HP)
stroke Per Minute: 120 SPM
Stroke Length: 304.8 mm (12")
Gear Ratio: 4.206:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#7
Max.Liner Size : 184 mm (7 1/4")
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)
Overall Dimension (L×W×H):4685×2414×2003 mm3 (15.37×7.92×6.57 ft3)
Approx Weight: 24751 kg (54567 lb)
