F1600HL 1600 HP Drilling Mud Pump High Pressure 7500 Psi

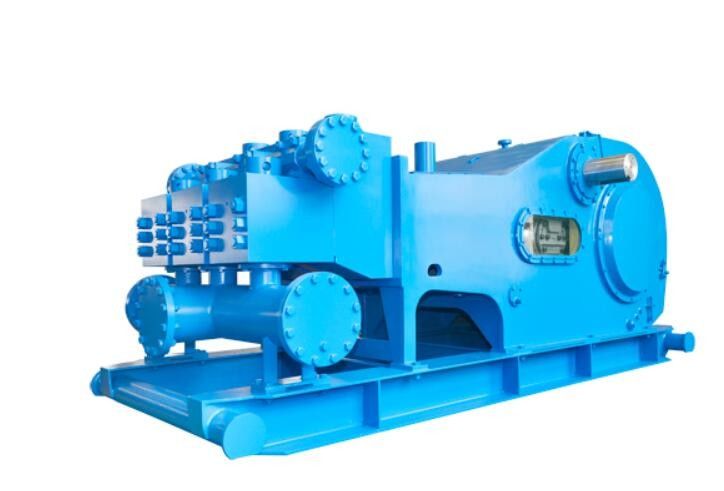

F1600HL Drilling Mud Pump High Pressure based on the conventional F1600 pump power end structure, upgraded the F1600 Drilling Mud Pump hydraulic end, used the L-shaped liquid cylinder. The maximum working pressure can reach 51.7MPa(7500 psi).
Parameters of F1600HL 1600 HP Drilling Mud Pump
Liner Size | in |
7 1/4
|
7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 | 4 1/2 |
Discharge Pressure | Mpa |
22.0
|
23.6
|
25.4
|
27.4
|
29.7
|
32.2
|
38.3
|
46.3
|
51.7
|
psi |
3190
|
3422
|
3683
|
3973 |
4307 |
4669
|
5555
|
6715
|
7500
|
|
Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||||
120 |
*1193
(1600)
|
48.71
(772.0)
|
45.41
(719.7)
|
41
(649.8)
|
39.15
(620.5)
|
36.20
(573.7)
|
33.36
(528.7)
|
28.03
(444.2)
|
23.17
(367.2)
|
18.77
(281.7)
|
110 |
1093
(1466)
|
44.65
(707.7)
|
41.63
(659.8)
|
38.07
(603.4)
|
35.89
(568.8)
|
33.18
(525.9)
|
30.58
(484.7)
|
25.69
(407.1)
|
21.24
(336.6)
|
17.20
(272.6)
|
100 |
994
(1333)
|
40.59
(643.3)
|
37.84
(599.7)
|
35.18
(557.6)
|
32.63
(517.1)
|
30.17
(478.2)
|
27.8
(440.6)
|
23.36
(370.2)
|
19.31
(306.0)
|
15.64
(248.1)
|
90 |
895
(1200)
|
36.53
(579.0)
|
34.06
(539.8)
|
31.67
(501.9)
|
29.36
(465.3)
|
27.15
(430.3)
|
25.02
(396.5)
|
21.02
(333.1)
|
13.38
(212.0)
|
14.08
(223.2)
|
50 |
497
(666)
|
20.29
(321.6)
|
18.92
(299.8)
|
17.59
(278.8)
|
16.31
(258.5)
|
15.08
(239.0)
|
13.9
(220.3)
|
11.68
(185.1)
|
9.65
(152.9)
|
7.82
(123.9)
|
1 |
9.94
(13.3)
|
0.406
(6.43)
|
0.3784
(6.00)
|
0.3518
(5.57)
|
0.3518
(5.57)
|
0.3263
(5.17)
|
0.278
(4.40)
|
0.2336
(3.70)
|
0.1931
(3.06)
|
0.1564
(2.48)
|
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||||
--The * present the recommendatory SPM and input power when the mud pump runs continuously. |
F1600HL 1600 HP Drilling Mud Pump Specification :
Rated input Power: 1193 kW (1600 HP)
Stroke Per Minute: 120 SPM
Stroke Length: 304.8 mm (12")Gear Ratio: 4.206:1
Max. Working Pressure: 52 MPa (7500 psi)
Valve: API#7
Max.Liner Size : 184 mm (7 1/4")
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange, 70 MPa (10000 psi)
Overall Dimension (LxW×H):4950×2414×1975 mm3(16.24×7.92×6.84 ft3)
Approx Weight : 25772 kg (56817 lb)
