3000psi Choke Manifold Parts Choke And Kill Manifold For Petroleum Equipment

1 set
MOQ
USD 50000-100000 per set
Price
3000psi Choke Manifold Parts Choke And Kill Manifold For Petroleum Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Choke Manifold Line Up
Model: YG21
Bore Size: 4 1/16"
Pressure: 3000psi
Application: Petroleum Equipment
Standard: API 16C
Highlight:

3000psi Choke Manifold Parts

,

3000psi Choke And Kill Manifold

,

Petroleum Equipment Choke Manifold Parts

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16C
Model Number: YG21
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

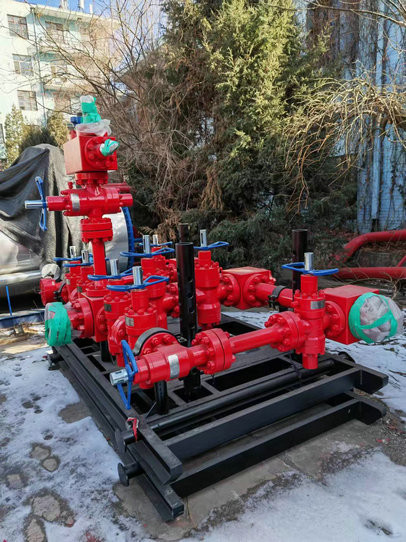

Petroleum Equipment Choke Manifold Line Up 4 1/16" -3000psi



The choke and kill manifold is a special well-control manifold consisting of throttle valves, valves, manifolds, and pressure gauges. It is used to control the annular fluid discharge and well back pressure. According to the water, kill fluid and cement slurry into the annulus, to achieve the purpose of killing the well, waterproofing, and fire fighting. It is an essential part of well-control operations, especially kill operations. Not only has high-pressure resistance, heat insulation, flame retardant, fire resistance, and other properties, but the inner wall has high wear resistance.



Parameter



Type Working pressure Main bore dia By-pass dia. Remarks
(psi) On.) (In.)
YG140 20000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 1/16" 2 9/16" Different types of combinations can be provided according to requirements
YG105 15000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 9/16" 2 1/16"
YG70 10000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 4 1/16" 3 1/16" 2 9/16" 2 1/16"
YG35 5000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"
YG21 3000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"



Configuration


The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges, and other components.



Working Principles


When the pressure inside the well rises, opening/closing the choke valves(including manual chokes, hydraulic chokes, and positive chokes)on the choke manifold can allow the release of the fluid inside the well to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4. Pressure Ratings
The kill manifold is available in pressure ratings of 2000psi,3000psi,5000psi,10000psi, and 15000psi, and also can be available upon customer request.



Operating Instructions


(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at a place where the operator can reach it easily. The pressure test must be performed before installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120-degree steel bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under low-temperature conditions.
