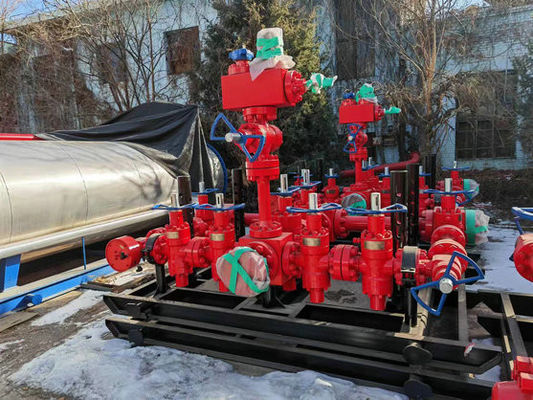

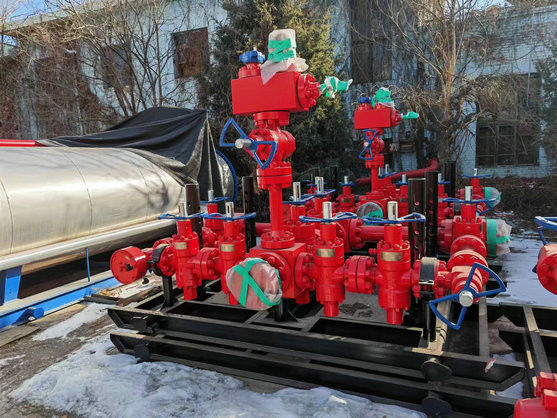

Wellhead Pressure Control Choke Manifold Well Testing For Oil Well

1 set
MOQ
USD 50000-100000 per set
Price
Wellhead Pressure Control Choke Manifold Well Testing For Oil Well
Features Gallery Product Description Request A Quote
Features
Specifications
Keywords: Choke Kill Manifold
Model: YG21
Bore Size: 2 1/16"
Pressure: 3000psi
Application: Oil Well
Standard: API 16C
Highlight:

Oil Well Choke Manifold Well Testing

,

Wellhead Pressure Control Choke Manifold

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16C
Model Number: YG21
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

2 1/16" -3000psi Choke Kill Manifold For Oil Well



The Choke Kill Manifold is the essential well-control devices to control overflow and blow-out,and also to approach the balance pressure drilling .the Choke Kill Manifold is applicable for controlling casing pressure by use of pressure relief and blowout,and for maintaining the pressure balance inside the well bore and hence protecting the wellhead.the kill-line manifold is applicable for killing operation to pump the killing fluid into the down-hole,which prevents accidents from happening and insures production safety.



Parameter



Type Working pressure Main bore dia By-pass dia. Remarks
(psi) On.) (In.)
YG140 20000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 1/16" 2 9/16" Different types of combinations can be provided according to requirements
YG105 15000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 9/16" 2 1/16"
YG70 10000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 4 1/16" 3 1/16" 2 9/16" 2 1/16"
YG35 5000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"
YG21 3000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"



Configuration


The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges, and other components.



Working Principles


When the pressure inside the well rises, opening/closing the choke valves(including manual chokes, hydraulic chokes, and positive chokes)on the choke manifold can allow the release of the fluid inside the well to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4. Pressure Ratings
The kill manifold is available in pressure ratings of 2000psi,3000psi,5000psi,10000psi, and 15000psi, and also can be available upon customer request.



Operating Instructions


(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at a place where the operator can reach it easily. The pressure test must be performed before installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120-degree steel bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under a low-temperature conditions.
