5000psi Drilling Rig Choke Manifold

1 set
USD 50000-100000 per set
5000psi Drilling Rig Choke Manifold
Features Gallery Product Description Request A Quote
Name: Choke Kill Manifold
Model: YG35
Bore Size: 2 1/16"
Pressure: 5000psi
Application: Well Control System
Standard: API 16C

5000psi Drilling Rig Choke Manifold

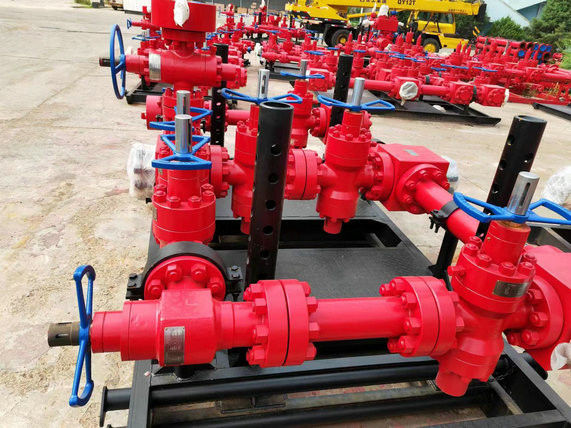

Red Drilling Rig Choke Manifold

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16C
Model Number: YG35
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

2 1/16" 5000psi Choke Kill Manifold Well Control System


As the wellhead pressure increases, the drilling fluids are injected through the kill manifold into the well to balance the downhole pressure so as to avoid overflow and blowout. The downhole pressure can be released through the discharge pipe connected to the kill manifold. The kill manifold is also used for cementing and injecting water, and fire retardant into the well. The check valve located on the kill manifold can realize killing and other operations by stopping backflow.




Type Working pressure Main bore dia By-pass dia. Remarks
(psi) On.) (In.)
YG140 20000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 1/16" 2 9/16" Different types of combinations can be provided according to requirements
YG105 15000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 9/16" 2 1/16"
YG70 10000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 4 1/16" 3 1/16" 2 9/16" 2 1/16"
YG35 5000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"
YG21 3000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"



The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges, and other components.


Working Principles

When the pressure inside the well rises, opening/closing the choke valves(including manual chokes, hydraulic chokes, and positive chokes)on the choke manifold can allow the release of the fluid inside the well to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4. Pressure Ratings
The kill manifold is available in pressure ratings of 2000psi,3000psi,5000psi,10000psi, and 15000psi, and also can be available upon customer request.


Operating Instructions

(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at a place where the operator can reach it easily. The pressure test must be performed before installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120-degree steel bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under a low-temperature conditions.
