2 9/16" 15000psi Kill Manifold For Well Drilling
Features
1. Kill Manifold Control the well fluid flow
2. Built-in Cameron-style gate valves which can be redressed on pipeline
3. Standard two-flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke
4. Kill Manifold Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection
5. Metal-to-metal, double seal to ensure reliability in harsh environments
Kill Manifold Parameter
| Type | Working pressure | Main bore dia | By-pass dia. | Remarks |
| (psi) | On.) | (In.) | ||
| YG140 | 20000 | 4 1/16" 3 1/16" 2 9/16" 2 1/16" | 3 1/16" 2 1/16" 2 9/16" | Different types of combinations can be provided according to requirements |
| YG105 | 15000 | 4 1/16" 3 1/16" 2 9/16" 2 1/16" | 3 1/16" 2 9/16" 2 1/16" | |
| YG70 | 10000 | 4 1/16" 3 1/16" 2 9/16" 2 1/16" | 4 1/16" 3 1/16" 2 9/16" 2 1/16" | |
| YG35 | 5000 | 4 1/16" 3 1/8" 2 9/16" 2 1/16" | 4 1/16" 3 1/8" 2 9/16" 2 1/16" | |
| YG21 | 3000 | 4 1/16" 3 1/8" 2 9/16" 2 1/16" | 4 1/16" 3 1/8" 2 9/16" 2 1/16" |

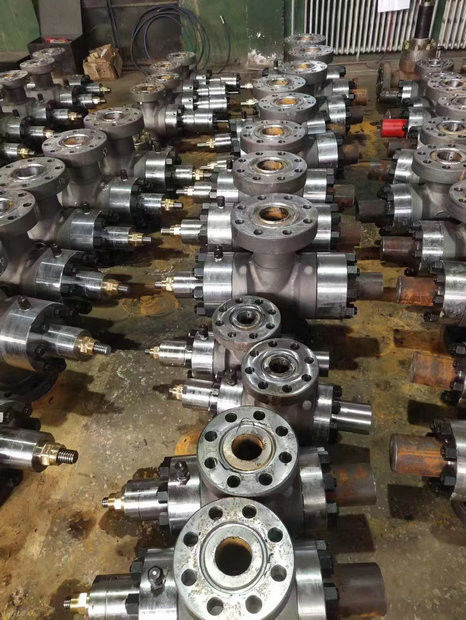

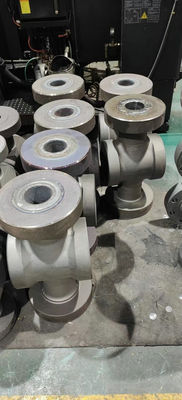

Configuration
The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges, and other components.
Working Principles of Kill Manifold
When the pressure inside the well rises, opening/closing the choke valves(including manual chokes, hydraulic chokes, and positive chokes)on the choke manifold can allow the release of the fluid inside the well to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4. Pressure Ratings
The kill manifold is available in pressure ratings of 2000psi,3000psi,5000psi,10000psi, and 15000psi, and also can be available upon customer request.
Operating Instructions
(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at a place where the operator can reach it easily. The pressure test must be performed before installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120-degree steel bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under low-temperature conditions.
