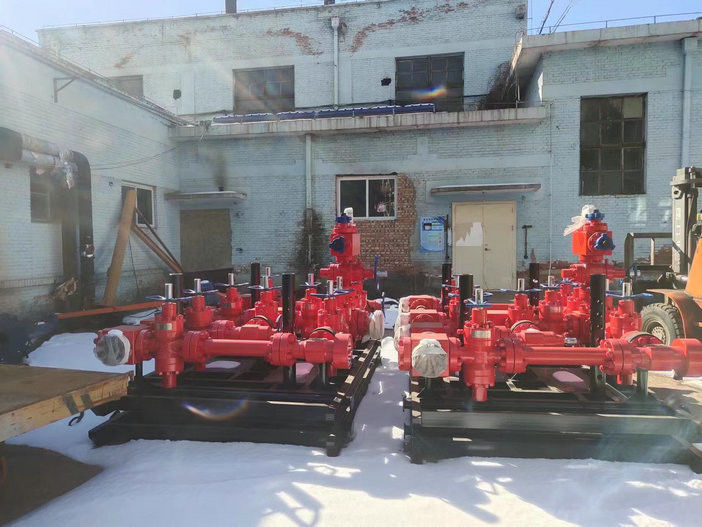

2 1/16 Inch 20000psi Choke Kill Manifold For Oilfield Well Testing

1 set
MOQ
USD 50000-100000 per set
Price
2 1/16 Inch 20000psi Choke Kill Manifold For Oilfield Well Testing
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Choke Kill Manifold
Model: YG140
Bore Size: 2 1/16 Inch
Pressure: 20000psi
Application: Oilfield Well Testing
Standard: API 16C
Highlight:

2 Inch Choke Kill Manifold

,

Oilfield Well Testing Choke Kill Manifold

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16C
Model Number: YG140
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

2 1/16 Inch 20000psi Choke Kill Manifold Oilfield Well Testing



A choke Kill Manifold is a system of valves and chokes for controlling the flow from the well usually has two flow paths, one adjustable choke used primarily for cleaning the well up and facilities to install and change choke of fixed sizes for more accurate flow control during main good flow periods.



Choke Kill Manifold Parameter



Type Working pressure Main bore dia By-pass dia. Remarks
(psi) On.) (In.)
YG140 20000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 1/16" 2 9/16" Different types of combinations can be provided according to requirements
YG105 15000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 9/16" 2 1/16"
YG70 10000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 4 1/16" 3 1/16" 2 9/16" 2 1/16"
YG35 5000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"
YG21 3000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"



Configuration


The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges, and other components.



Choke Kill Manifold Working Principles


When the pressure inside the well rises, opening/closing the choke valves(including manual chokes, hydraulic chokes, and positive chokes)on the choke manifold can allow the release of the fluid inside the well to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4. Pressure Ratings
The kill manifold is available in pressure ratings of 2000psi,3000psi,5000psi,10000psi, and 15000psi, and also can be available upon customer request.



Operating Instructions


(1) The working pressure of all components on the choke manifold shall be compatible with that of the BOP stack used.
(2) The choke manifold shall be installed at a place where the operator can reach it easily. The pressure test must be performed before installation and the seat test pressure shall be equal to the rated working pressure.
(3) The line pipe shall be level and straight as much as it could. In case of the turn of the line pipe, the 120-degree steel bent pipe shall be used. The bore of the line pipe shall be large enough.
(4) The pressure gauge must be installed.
(5) In winter, the choke manifold can work under a low-temperature conditions.
