The inner diameter assembly is a part of the mud pump and serves as the pressure equalizer for the mud pump, with a maximum pressure of 5000psi. It is
Forged from high-quality alloy steel 35CrMo or 40CrMnMo, it has high mechanical properties and spraying process. We can produce nearly
Any type of mud pump or customized to your requirements.
Features:
1. The pulsation damper is forged from 4130 low-temperature resistant alloy steel
2. The internal dimensions of the pulsation damper are precise, with a surface roughness of 6.3, which increases the service life of the airbag.
3. Various materials are available for selection to meet a wide range of applications.

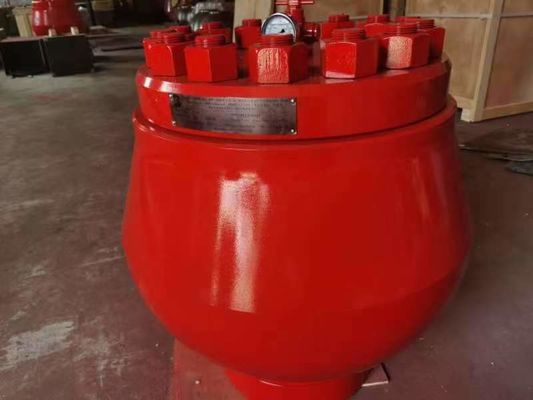

FORUS provides various drilling and production spherical pulsation dampers, ranging in size from 1 gallon to 20 gallons
The pressure range ranges from 250 psi to 7500 psi. The valve body of the spherical pulsation damper is made of a whole piece of forged steel,
Eliminated the possibility of weld fatigue failure.
The overall spherical design can achieve high efficiency in a small volume and does not require additional structural support. The same goes for spherical design
Provides more pipeline flexibility than connected dampers.
Supply mud pump parts brand and model
BOMCO: f -500 f -800 f -1000, f -1300, f -1600, -1600 hl f -2200 Hodgkin lymphoma
Super high frequency Safflower: Super high frequency -500-1000 years, Super high frequency -1300, Super high frequency -1600, Super high frequency -1600 hl, Super high frequency -2200 Hodgkin lymphoma
Rongsheng: RS-F500 RS-F800, RS-F1000 RS-F1300 RS-F1600
|
S/N |
代 号 Code |
名 称 Name |
数量 QTY |
| RS11308A.19.00 | KB-45空气包 KB-45 pulsation dampener |
||
| 35 | YK-150 | 双刻度抗震压力表0-6000psi Double scale pressure gauge 0-6000psi |
1 |
| 36 | RS11306A.20.00 | 排出五通总成 Discharge 5-way assembly |
1 |
| RS11308A.16.00 | |||
| 38 | JA-3剪销安全阀 JA-3 shear pin safety valve |
1 | |
| 39 | RS11309A.17.00 | 安全阀接管总成 Safety valve adaptor assembly |
1 |
| 40 | SY5127 | 垫环 R44 Gasket ring R44 |
2 |
