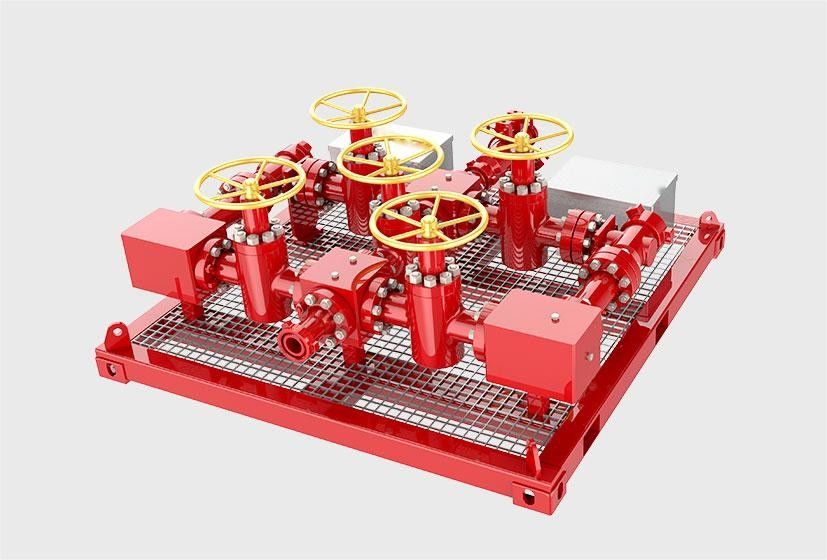

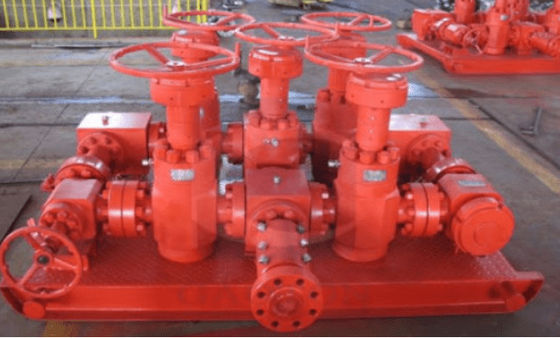

Red Choke And Kill Manifold API 16C 6A 2 1/16'' 3000 - 20000psi

1 Pc
MOQ
Please contact sales@pantuhb.com for best offer
Price
Red Choke And Kill Manifold API 16C 6A 2 1/16'' 3000 - 20000psi
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Red
Working Pressure: From 3000psi To 20000psi
Bore Size: 2 1/16''
Standard: API 16C API 6A ISO 10423:2009
Performance Level: PR1 PR2
Highlight:

Oil Gas Choke And Kill Manifold

,

Choke And Kill Manifold API 16C

,

2 1/16'' Choke Manifold

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16C API 6A ISO 10423:2009
Model Number: 2 1/16'' 3000psi 5000psi 10000psi 15000psi 20000psi
Payment & Shipping Terms
Packaging Details: Iron case, Wooden case, Skid
Delivery Time: 7~60 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 60Pc/month
Product Description

Choke Manifold Introduction



A choke manifold is a crucial component used in oil and gas drilling operations to control wellbore pressure and flow during various drilling, well control, and intervention activities. It consists of a set of valves, gauges, pipes, and fittings that allow operators to manage the flow rate of drilling fluids (such as drilling mud, oil, or gas) from the wellbore.



Kill Manifold Introduction



A kill manifold is a specialized component used in the oil and gas industry, particularly in well control operations during drilling, completion, and intervention activities. It is a system designed to control wellbore pressures and fluids by providing a means to introduce heavy fluids (kill fluids) into the wellbore to balance formation pressures and regain control over the well. Kill manifolds are critical for ensuring the safety of drilling operations and preventing uncontrolled releases of fluids.



Kill Manifold Parameter



Item Model Working Pressure
(psi)
Main Bore
(in)
Bypass Bore
(in)
Remark
1 YG140 20000

4 1/16, 3 1/16,

2 9/16, 2 1/16

3 1/16, 2 1/16,
2 9/16
Can be customized
2 YG105 15000

4 1/16, 3 1/16,

2 9/16, 2 1/16

3 1/16, 2 9/16
2 1/16
3 YG70 10000

4 1/16, 3 1/16,

2 9/16, 2 1/16

4 1/16, 3 1/16,
2 9/16, 2 1/16
4 YG35 5000 4 1/16, 3 1/8,
2 9/16, 2 1/16
4 1/16, 3 1/8
2 9/16, 2 1/16
5 YG21 3000 4 1/16, 3 1/8,
2 9/16, 2 1/16
4 1/16, 3 1/8
2 9/16, 2 1/16







Choke manifold Parameter



Item Model Working Pressure
(psi)
Main Bore
(in)
Bypass Bore
(in)
Remark
1 YJG140 20000 4 1/16, 3 1/16, 2 9/16, 2 1/16 4 1/16 3 1/16,
2 1/16, 2 9/16
Can be customized
2 YJG105 15000 4 1/16, 3 1/16, 2 9/16, 2 1/16 4 1/16 3 1/16,
2 1/16, 2 9/16
3 YJG70 10000 4 1/16, 3 1/16, 2 9/16, 2 1/16 4 1/16, 3 1/16,
2 9/16, 2 1/16
4 YJG35 5000 4 1/16, 3 1/8,
2 9/16, 2 1/16
4 1/16, 3 1/8
2 9/16, 2 1/16
5 YJG21 3000 4 1/16, 3 1/8,
2 9/16, 2 1/16
4 1/16, 3 1/8
2 9/16, 2 1/16





Competitive Advantages:



1. Cost to satisfy:
Contact sales@pantuhb.com for the best offer


2. Pressure control:
Quick response capability: The choke manifold can fleetly acclimate the choke stopcock opening to acclimatize to changes in pressure, enabling rapid-fire pressure control.


3. Safety Enhancement:
The use of kill manifolds enhances the safety of drilling operations by providing a means to prevent or mitigate well control incidents. This protects personnel, equipment, and the environment.


4. Versatility:
Kill manifolds can be used in various well-control operations, including drilling, completions, interventions, and well testing. They provide a versatile solution for different stages of oil and gas operations.


5. Precise Fluid Control:
Kill manifolds offer precise control over kill fluids' flow rate and pressure. This level of control is crucial for maintaining the integrity of the well and preventing overpressure situations.
