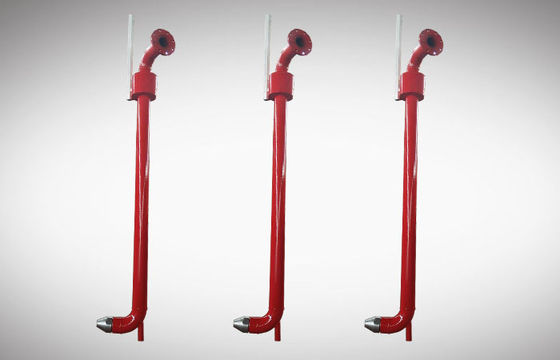

Drill Mud Gun Introduction:
A drill mud gun, also known simply as a mud gun, is a device used in the oil and gas drilling industry. It is designed to clean and agitate drilling mud or drilling fluid in a mud tank or pit. Drilling mud is a mixture of various fluids, chemicals, and solids that serves multiple purposes during drilling operations, including cooling and lubricating the drill bit, carrying cuttings to the surface, and maintaining wellbore stability.
Drill Mud Gun Functions:
Agitation: The forceful ejection of mud helps keep the drilling fluid well-mixed and prevents settling of solids, ensuring consistent fluid properties.
Cleaning: The mud gun can be directed towards the tank walls and corners to break up accumulated solids or debris, preventing their accumulation.
Fluid Transfer: Mud guns can be used to transfer mud between different compartments of the mud tanks, aiding in maintaining a balanced mud system.
Drill Mud Gun Parameter:
Model | MDG 302 | MDG 303 | MDG 304 | MDG 305 |
Nozzle | 2″ (φ50) | 2″ (φ50) | 3″ (φ80) | 3″ (φ80) |
Gate vale | 50mm | 50mm | 80mm | 80mm |
Interface | 2″ | 2″ | 3″ | 3″ |
Working pressure | 1.6/3.2/6.4Mpa 232/464/928psi |
1.6/3.2/6.4Mpa 232/464/928psi |
1.6/3.2/6.4Mpa 232/464/928psi |
1.6/3.2/6.4Mpa 232/464/928psi |
Nozzle QTY | 3 | 1 | 3 | 1 |
Rotation Angle | 120°/0 | 120° | 120°/0 | 120° |
Remark | Rotatable/Non-rotatable | Rotatable | Rotatable/Non-rotatable | Rotatable |
What Types of Drill Mud Guns We Can Offer:
Fixed Mud Guns
Rotating Mud Guns
High-Pressure Mud Guns

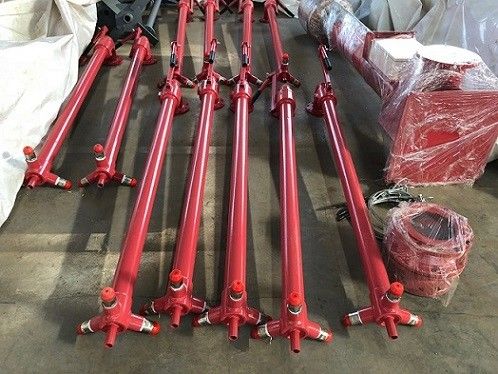

Multi-Nozzle Mud Guns
Vertical Mud Guns
Submersible Mud Guns
Adjustable Mud Guns
Remote-Controlled Mud Guns
Please contact sales@pantuhb.com for the best offer
