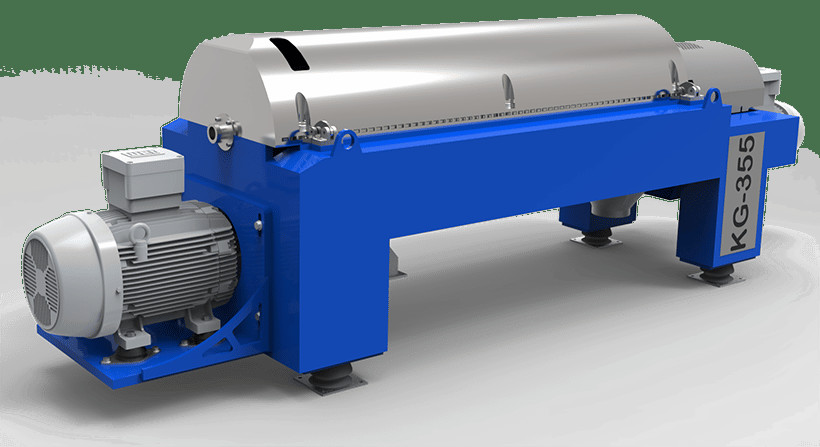

Duplex Stainless Steel 304 Decanter Centrifuge Mud Pump Spares

1 Pc
MOQ
Please contact sales@pantuhb.com for best offer
Price
Duplex Stainless Steel 304 Decanter Centrifuge Mud Pump Spares
Features Gallery Product Description Request A Quote
Features
Specifications
Bowl: 14 Inch（360mm）, 18 Inch（450mm）, 22 Inch（550mm）,
Capacity: 200GPM(45m3/h)，352GPM(80m3/h)，484GPM(110M3/h)
Speed: 3200RPM，2800RPM， 2500RPM
Gearbox Torch: 3500N.M，7500N.M，12000N.M
Main Drive Motor: 37KW(50HP)，55KW(75HP)，90KW(120HP)
Recommend Pump: 7.5KW(10HP)，15KW(20HP)，22KW(30HP)
Highlight:

Decanter Centrifuge Mud Pump Spares

,

Duplex Stainless Steel Decanter Centrifuge
Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 13C, ISO, ASME, IACD
Model Number: DC360，DC360-2，DC450，DC550
Payment & Shipping Terms
Packaging Details: Iron case, Wooden case, Skid
Delivery Time: 7-60 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50Pc/month
Product Description

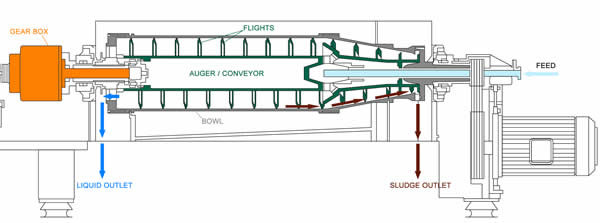

Decanter Centrifuge Introduction:



A decanter centrifuge is a specialized type of centrifuge used for separating solids from liquids in a continuous and efficient manner. It operates on the principle of centrifugal force, where the denser solids are separated from the lighter liquids due to their differing densities and relative sizes. Decanter centrifuges are commonly used in various industries for solid-liquid separation and dewatering processes.



Our Decanter Centrifuge Features:



Bowl Cylindrical and Conical section made from Duplex Stainless Steel 2304 by centrifugal casting.


Other Parts of the bowl assembly material: stainless steel SS304.


Screw protection: Tungsten Carbide Tiles for longer life and easier replacement.


Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.


Easily adjustable liquid discharge weir height for flexible application.


Bowl assembly supported by tighten belt for protection of bearing in moving.


Pressurized EX Proof VFD control cabinet with PLC controlled.



Parameters of Decanter Centrifuge:



Model DC360 DC360-2 DC450 DC550
Bowl Diameter 360mm(14inch) 360mm(14inch) 450mm(18inch) 550mm(22inch)
Bowl Length 1271mm(50inch) 1271mm(50inch) 1540mm(61inch) 1800mm(71inch)
Max. Capacity 200GPM(45m3/h) 200GPM(45m3/h) 352GPM(80m3/h) 484GPM(110M3/h)
Effective Capacity 132GPM(30m3/h) 132GPM(30m3/h) 264GPM(60m3/h) 400GPM(90m3/h)
Max Bowl Speed 3900RPM 3900RPM 3200RPM 3000PRM
Typical Bowl 3200RPM 0~3200RPM 0~2800RPM 0~2500RPM
Speed
Max G-Force 3063 3063 2578 2719
Typical G-Force 2062 0~2062 0~1973 0~1888
Separation point 2~5µm 2~5μm 2~5µm 2~5μm
Differential Speed 40 0~40 0~35 0~45
Gearbox Torch 3500N.M 3500N.M 7500N.M 12000N.M
Gear Box Ration 57:01:00 57:01:00 57:01:00 35:01:00
Main Drive Motor 37KW(50HP) 37KW(50HP) 55KW(75HP) 90KW(120HP)
Back Drive Motor 11KW(15HP) 11KW(15HP) 22KW(30HP) 37KW(50HP)
Recommend Pump 7.5KW(10HP) 7.5KW(10HP) 15KW(20HP) 22KW(30HP)
