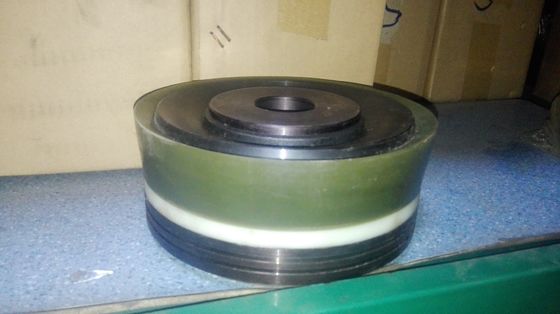

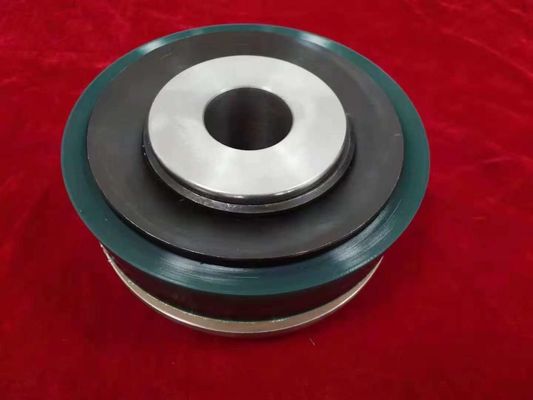

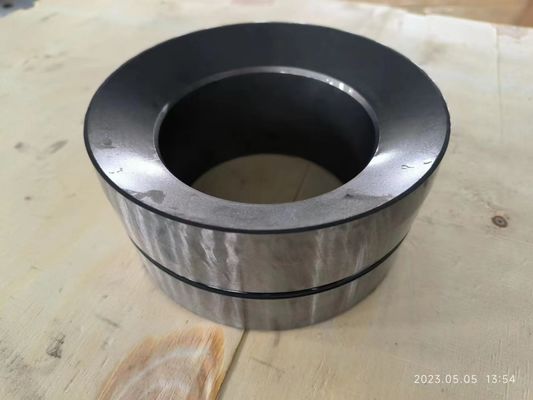

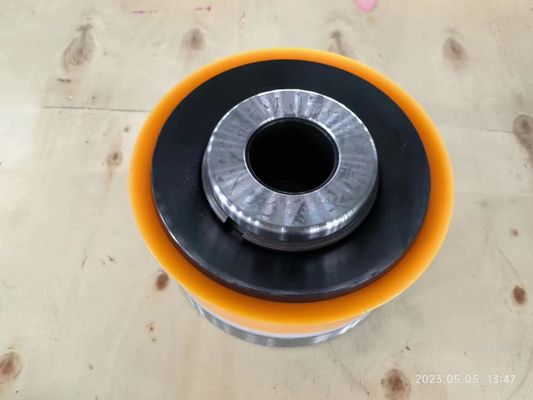

Wear Resistance Mud Pump Piston Spares F500 F800 F1000 F1200 F1600 F2200

1 Pc
Please contact for best offer
Wear Resistance Mud Pump Piston Spares F500 F800 F1000 F1200 F1600 F2200
Features Gallery Product Description Request A Quote
Size: 3.5'', 4'', 4.5'', 5'', 5.25'', 5.75'', 6'', 6.25'', 7'', 7.25'', 7.5'', 8'', 8.5''
Suitable Model: F500, F800, F1000, F1200, F1600, F2200

F500 Mud Pump Piston


Piston Mud Pump Spares


Wear Resistant Mud Pump Piston

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 7K & ISO
Model Number: 3.5'', 4'', 4.5'', 5'', 5.25'', 5.75'', 6'', 6.25'', 7'', 7.25'', 7.5'', 8'', 8.5''
Payment & Shipping Terms
Packaging Details: Iron case, Wooden case
Delivery Time: 1-30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50Pc/month
Product Description



A mud pump piston, also known simply as a pump piston, is a critical component of a mud pump, a specialized reciprocating pump used in various industries, including oil and gas drilling. The primary purpose of a mud pump is to circulate drilling mud or drilling fluid during drilling operations. Mud pumps are essential for maintaining the integrity of the wellbore, cooling and lubricating the drill bit, and removing drilled cuttings from the borehole.


Features of Piston


Reciprocating Motion: Mud pump pistons move in a reciprocating (back-and-forth) motion within a cylinder. This reciprocating motion creates alternating cycles of suction and discharge, allowing the pump to draw in drilling mud and then forcefully push it into the wellbore.


Sealing: Mud pump pistons are equipped with seals, rings, and packing to prevent leakage and maintain high-pressure conditions within the pump cylinder. Proper sealing is essential for the efficiency and safety of the pump.


Single-Acting or Double-Acting: Mud pumps can have single-acting or double-acting pistons. Single-acting pistons perform one power stroke (either up or down) per cycle, while double-acting pistons perform power strokes in both directions of the reciprocating motion.


Wear Resistance: Mud pump pistons are designed to be highly wear-resistant since they are subjected to repeated high-stress movement and constant contact with abrasive drilling mud.


Maintenance: Routine maintenance of mud pump pistons is critical to ensure their longevity and proper functioning. This includes checking and replacing seals, rings, and packing as needed.


Offered Piston Type


3.5'', 4'', 4.5'', 5'', 5.25'', 5.75'', 6'', 6.25'', 7'', 7.25'', 7.5'', 8'', 8.5''


Brand Adaptable model
Bomco F-500 F-800 F-1000 F-1300 F-1600 F-1600HL
Brewster B-1000-T B-1100-T B-1300-T B-1600-T
HONGHUA HHF-500 HHF-800 HHF-1000 HHF-1300 HHF-1600 HHF-1600HL HHF-2200HL
Emsco F-350 F-500 F-650 F-800 F-1000 FD-1000 FB-1300
FB-1600 FA-1600 FA-1300 FC-1600 FD-1600 FC-2200D-300/500 D-175
D-225 D-375 D-500 D-550 DA-500 DB-500 D-700
DA-70 DB-700 DC-700 DA-850 DB-850 DC-850 D-1000
DB-1000 DC-1000 D-1000-A D-1350 D-1650
National 7-P-50 8-P-80 9-P-100 10-P-130 12-P-160 14-P-220 JWS-165-L
JWS-340 JWS-400 C-250 C-350 K-380 K-500-A G-700
K-700 N-1000 N-1300 N-1600
Oilwell 350-PT A-650P-T A-850-PT A-1100-PT A-1400-PT A-1700-PT HD-1400-PT
HD-1700-PT 612-P 212-P 214-P 218-P 700-P 816-P
818-P 1000-P
Ideco T-500 T-800 T-1000 T-1300 T-1600 MM-450 MM-500-F
MM-600-A MM-700-F MM-1000
Gardner Denver PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 FK-FXK FY-FXD
TGE TGF TGH PAH-275
LS National Mud Pumps 3NB-500C 3NB1000C 3NB1300C 3NB1600
Wirth Mud Pump TPK1000 TPK1600 TPK2000
Russian Pumps UNBT-950 UNB-600 8T-650 UNBT650 NBT600 UNB1180 UNB1180L
WEATHERFORD/Ellis Williams MP-5 MP-8 MP-10 MP-13 MP-16 E-447 E-2200
W446 W440
Drillmec 7TS-600 8T-800 9T1000 10T-1300 12T1600 14T-2200 10D2C
Upetrom 3PN-1000 3PN-1600 3PN-1300 3PN-2000
OPI 350-D 350-GD 500-DC 700-HDL 1000-HDL
Lewco/Ewco W-250-C WH440 W446 W600 WH600 WH770 W1100
WH1312 W1612 W1712 W2000 W2214 W2215
American Block K800 K1000 K1300 K1600 K2200
Loadmaster LSF-500 LSF-800 LSF-1000 LSF-1300 LSF-1600
Soilmec 7T500 7T508 8T650
Dragon 440HP 660HP
GASO/Wheatly 1550 1560 1563 1654 1742 1753 1874
1849 1860 2652
Great American GA-550 GA-750
TFI BH-800 F-500 F-800 F-1000 F-1300 F-1600
TSC WF-400 WF-450 WF-700 WFU-750 WF-1000 WF-1300 WF-1600
WF-2000 WF-2200




Proven, reliable performance in every piston

Resistant to high pressure, abrasion, heat and extrusion

Trusted on the largest domestic and international rigs in the world

Averages 30%+ longer life than other mud pump pistons

Multi-durometer bonded urethane allows for longer piston life

Innovation design seals for less ‘squirt’ which reduces flush system contamination

Superior lip and cut back hub design reduces wear on

liner dramatically lowering mud pump operating costs

Available in a custom wooden box for protection during shipping
