F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares

F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares
F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares

Large Image :  F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares

Product Details:
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 7K
Model Number: F800 Cylinder Liner
Payment & Shipping Terms:
Minimum Order Quantity: 10 set
Price: 300USD-500USD
Packaging Details: wooden case
Delivery Time: 7 days
Payment Terms: L/C,T/T
Supply Ability: 100 SET per month
Contact Now

F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares

Description
Highlight:

Drilling Mud Pump Cylinder Liners

,

F800 Horse Power Cylinder Liners

F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares
Product Overview
  • Our drilling mud pump bimetal cylinder liner is manufactured to strict quality standards matching US export requirements. The outer sleeve uses 45# steel, while the inner sleeve features centrifugally cast high chromium cast iron with 27-29% chromium content.
  • Inner hole quenching hardness ranges from 38-65HRC, with inner diameter tolerance precisely controlled within 0.13mm after fine grinding. The finish achieves a mirror effect, with service life exceeding 900 hours (maximum over 1000 hours).
  • Product quality is internationally recognized, featuring cylinder liner sealing rings made from imported rubber materials.
  • Manufactured according to US quality standards and processes, achieving equivalent quality to comparable US products.
Key Features
  • API 7K Standard - Compatible with major mud pump models
  • High Wear Resistance - Bi-metal alloy construction for extended service life
  • Multiple Sizes - Available in 4" to 7" bore liners
  • Easy Replacement - Precision fit with mud pump fluid end
  • Cost-effective - Reduces downtime and maintenance expenses
  • Service Life - 800-4000+ hours (varies by type)
Supply Brand Compatibility
  • HONGHUA: HHF-500, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
  • BOMCO: F-500, F-800, F-1000, F-1300, F-1600, F-1600HL, F-2200HL
  • RONGSHENG: RS-F500, RS-F800, RS-F1000, RS-F1300, RS-F1600
  • LS: 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
  • ITECO: T-500, T-800, T-1000, T-1600
  • EMSCO: F-350, F-500, F-650, F-800, F-1000, FA-1300, FA-1600, FB-1300, FB-1600, FC-1600, FC-2200, FD-1000, FD-1600
  • NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250, C-350, K-380, K-500-A, K-700
  • Oil WELL: A-350-PT, A-650-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
  • WEATHERFORD: MP-5, MP-8, MP-10, MP-13, MP-16
  • GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
Other Available Mud Pump Spare Parts
Product Name General Description API Standard Common Sizes/Models Compatible Mud Pump Models
Mud Pump Liner Bi-metal or ceramic liner for mud circulation API 7K 4"-7" bore sizes F-series, W-series, 3NB-series, QDP-series, T-series, Emsco, National, Oilwell, Bomco etc.
Piston & Piston Rod Rubber bonded piston with high-strength piston rod API 7K 4"-7" sizes F, W, 3NB, QDP, T-series and interchangeable with major OEM brands
Valve & Seat Interchangeable valve assemblies for fluid end API 7K #6, #7, #8 Compatible with all API standard mud pumps
Fluid End Module Forged alloy steel module for fluid end API 7K F, W, 3NB, QDP, T-series Widely used in oilfield drilling rigs
Crosshead & Extension Rod Precision machined for stable power transmission N/A Standard sizes F, W, 3NB, QDP, T-series
Cylinder Head & Cover Heavy-duty head & valve cover for liner protection API 7K Standard API sizes Compatible with all API mud pumps
Stuffing Box & Packing Sealing components to reduce leakage API 7K Standard packing sets F, W, 3NB, QDP, T-series
Wear Plate & Guide Shoe Protects crosshead and guides rod alignment N/A Standard F, W, 3NB, QDP, T-series
Crankshaft & Bearings Power end parts for reliable torque transmission N/A Standard F/W/3NB parts F, W, 3NB, QDP, T-series
Complete Fluid End Assy Fully dressed fluid end assembly API 7K F, W, 3NB, QDP, T-series Interchangeable with OEM brands

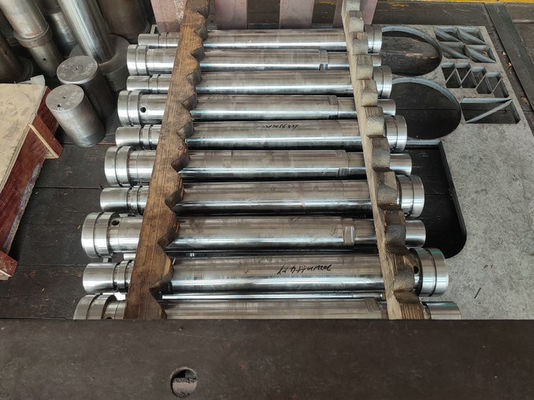

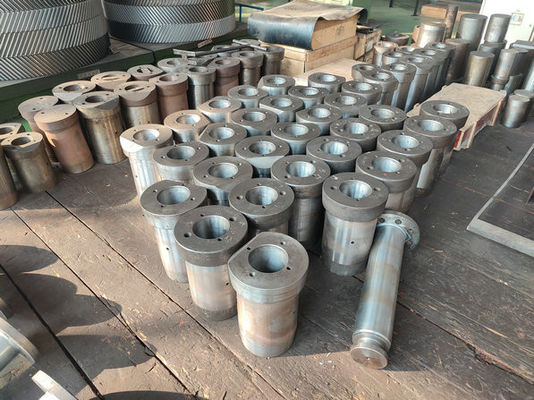

Product Photos
F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares 0 F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares 1 F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares 2 F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares 3 F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares 4 F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares 5 F800 Horse Power Cylinder Liners for Long-Lasting Drilling Mud Pump Spares 6
