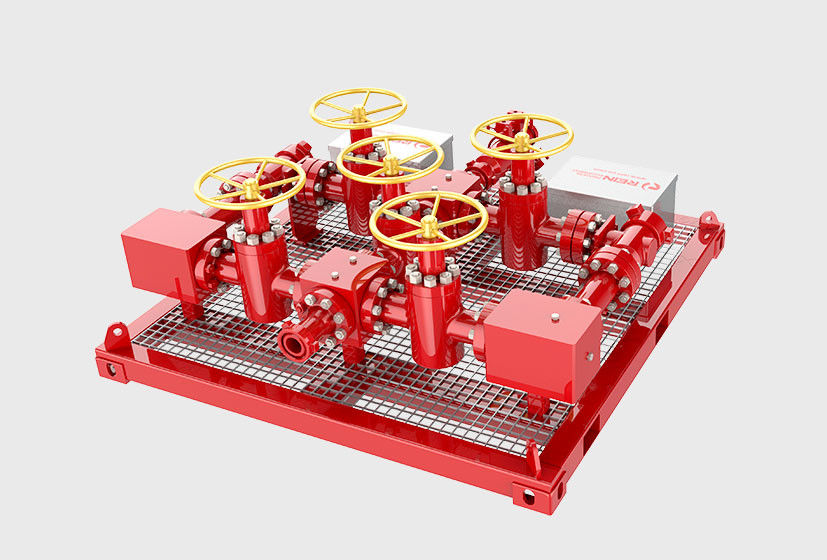

API 16C 3000psi Oilfield Wellhead Choke And Kill Manifold With Valves

1 set
MOQ
USD 50000-100000 per set
Price
API 16C 3000psi Oilfield Wellhead Choke And Kill Manifold With Valves
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Choke And Kill Manifold
Model: YG21
Bore Size: 3 1/8 Inch
Pressure: 3000psi
Application: Oilfield
Standard: API 16C
Highlight:

Choke Kill Manifold 3000psi

,

Oilfield Wellhead Choke And Kill Manifold

,

Choke And Kill Manifold With Valves

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16C
Model Number: YG21
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

Oilfield Wellhead Choke And Kill Manifold With Valves



Features of Choke And Kill Manifold



1. Regulate the flow of well fluid

2. Inbuilt gate valves in the Cameron design that are redressable on pipeline

3. Conventional two-way flow system: one via a positive choke and the other via an adjustable choke with a positive choke conversion

4. Offers a method for chemical injection, real-time temperature and pressure monitoring, and fluid sampling.

5. A double seal between metals to provide dependability in challenging conditions



Parameter of Choke And Kill Manifold



Type Working pressure Main bore dia By-pass dia. Remarks
(psi) On.) (In.)
YG140 20000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 1/16" 2 9/16" Different types of combinations can be provided according to requirements
YG105 15000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 3 1/16" 2 9/16" 2 1/16"
YG70 10000 4 1/16" 3 1/16" 2 9/16" 2 1/16" 4 1/16" 3 1/16" 2 9/16" 2 1/16"
YG35 5000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"
YG21 3000 4 1/16" 3 1/8" 2 9/16" 2 1/16" 4 1/16" 3 1/8" 2 9/16" 2 1/16"



Configuration


The choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges, and other components.



Choke And Kill Manifold Working Principles


When the pressure inside the well rises, opening/closing the choke valves(including manual chokes, hydraulic chokes, and positive chokes)on the choke manifold can allow the release of the fluid inside the well to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
4. Pressure Ratings
The kill manifold is available in pressure ratings of 2000psi,3000psi,5000psi,10000psi, and 15000psi, and also can be available upon customer request.
