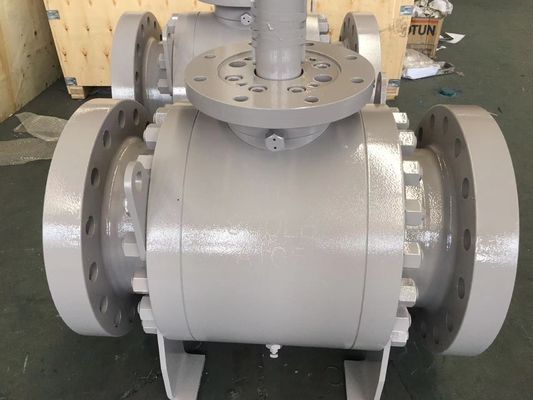

API 6D / 6A Standard FlangeConnection Hydraulic Ball Valve For Diverter 12" Class 300 Class 600 Class 900

1 set
MOQ
300-800USD
Price
API 6D / 6A Standard FlangeConnection Hydraulic Ball Valve For Diverter 12" Class 300 Class 600 Class 900
Features Gallery Product Description Request A Quote
Features
Specifications
NAME: Hydraulic Ball Valve
Bore Size: 2"-48"
Working Pressure: 150LB-2500LB
Advantage: Resistance H2S, Anti-corrosion
Standard: API Spec 6A, NACE M0175
Body Material: Material As Specified In ASME B16.34
Temperature Class: -46~250℃
Operator: Lever/Wrench、gear、motor Actuator, Pneumatic Actuator、hydraulic Actuator Etc.
Highlight:

Diverter Hydraulic Ball Valve

,

Flange Connection Hydraulic Ball Valve

,

API 6D Hydraulic Operated Ball Valve

Basic Infomation
Place of Origin: China
Brand Name: China Brand
Certification: API 6D
Model Number: 12" Class 300, 600, 900
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 10-20 DAYS
Payment Terms: T/T, L/C
Supply Ability: 500 sets per 1 month
Product Description

Production Description:



A hydraulic ball valve is a type of valve used in hydraulic systems to control the flow of fluid. It employs a ball with a hole or bore through the center that can be rotated to open or close the valve. When the ball is rotated 90 degrees, the bore aligns with the flow path, allowing fluid to pass through. When the ball is in the closed position, the bore is perpendicular to the flow path, blocking the fluid.

Here are some key features and components of a hydraulic ball valve:

1. Body: The body is the main outer casing of the valve, typically made of metal such as brass, stainless steel, or carbon steel. It provides the primary structure and houses the internal components.

2. Ball: The ball is a spherical component with a hole or bore through its center. It is usually made of metal, such as brass, stainless steel, or chrome-plated steel. The ball rotates within the valve body to control the flow.

3. Stem: The stem is a rod that connects the ball to the actuator or handle. When the stem is rotated, it moves the ball, opening or closing the valve.

4. Seats: Seats are sealing surfaces located inside the valve body against which the ball makes contact when in the closed position. The seats ensure a tight seal and prevent leakage when the valve is closed.

5. Actuator or Handle: The actuator or handle is the mechanism used to rotate the ball. It can be a lever, handwheel, or an automated actuator, depending on the specific application and requirements.

6. Seals: Seals, such as O-rings or gaskets, are used to provide a reliable seal between the ball and the valve body. They prevent leakage around the stem and between the ball and seats.

Hydraulic ball valves are commonly used in hydraulic systems, which involve the control and transmission of fluid power. They are used to regulate the flow of hydraulic fluids, such as oil, in various applications like industrial machinery, construction equipment, power generation, and hydraulic systems in vehicles.

Hydraulic ball valves offer advantages such as quick opening and closing, low fluid resistance when fully open, and the ability to handle high pressures and temperatures. They are available in different sizes, pressure ratings, and materials to suit specific hydraulic system requirements.



l Technical Parameters:



lNominal pipeline size:2~48 inch



lNominal pressure: 150~2500LB



lTemperature range:-46~250 Deg.C



lFluid: Water, oil, steam and other kinds of fluid



lBody material: Material as specified in ASME B16.34



lTesting Standard: API 6D/6A





lOperator: Lever/Wrench,gear,motor actuator, pneumatic actuator,hydraulic actuator etc.

               Table 1 Recommended torque for flange connection bolting



Bolt Size Torque (N.M) Bolt Size Torque (N.M)
1/2-13UNC 50~60 1-1/4 -8UN 850~1000
9/16-12 UNC 70~80 1-3/8-8 UN 1100~1300
5/8-11 UNC 100~130 1-1/2-8 UN 1400~1800
3/4-10 UNC 160~210 1-5/8-8 UN 1800~2200
7/8-9 UNC 280~330 1-3/4-8 UN 2200~2600
1-8 UNC 420~500 1-7/8-8 UN 2800~3300
1-1/8-8 UN 500~600 2-8 UN 3500~4200
