10" Flanged Connection Hydraulic Ball Valve For Diverter API 6D / 6A

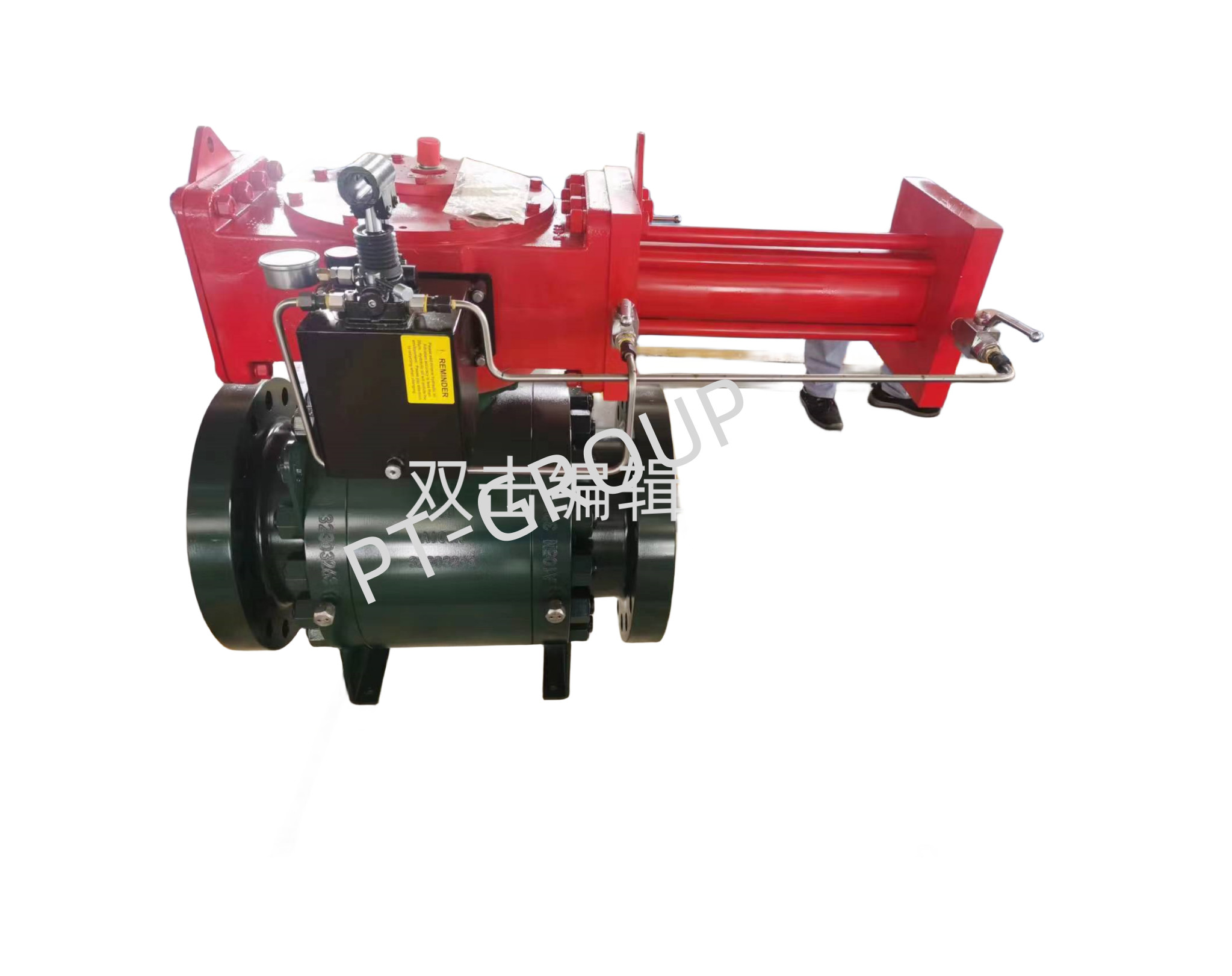

Large Image : 10" Flanged Connection Hydraulic Ball Valve For Diverter API 6D / 6A

Product Details:

Place of Origin:	China
Brand Name:	China Brand
Certification:	API 6A
Model Number:	10" Class 300, 600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	300-800USD
Packaging Details:	wooden case
Delivery Time:	10-20 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	500 sets per 1 month

Contact Now

10" Flanged Connection Hydraulic Ball Valve For Diverter API 6D / 6A

Description

NAME:	Hydraulic Ball Valve	Bore Size:	2"-48"
Working Pressure:	150LB-2500LB	Advantage:	Resistance H2S, Anti-corrosion
Standard:	API Spec 6A, NACE M0175	Body Material:	Material As Specified In ASME B16.34
Temperature Class:	-46~250℃	Operator:	Lever/Wrench、gear、motor Actuator, Pneumatic Actuator、hydraulic Actuator Etc.
Highlight:	10" Flanged Connection Hydraulic Ball Valve , Diverter Hydraulic Operated Ball Valve

Production Description:

l Technical Parameters:

lNominal pipeline size:2~48 inch

lNominal pressure: 150~2500LB

lTemperature range:-46~250 Deg.C

lFluid: Water, oil, steam and other kinds of fluid

lBody material: Material as specified in ASME B16.34

lTesting Standard: API 6D/6A

lOperator: Lever/Wrench,gear,motor actuator, pneumatic actuator,hydraulic actuator etc.

Table 1 Recommended torque for flange connection bolting

Bolt Size	Torque (N.M)	Bolt Size	Torque (N.M)
1/2-13UNC	50~60	1-1/4 -8UN	850~1000
9/16-12 UNC	70~80	1-3/8-8 UN	1100~1300
5/8-11 UNC	100~130	1-1/2-8 UN	1400~1800
3/4-10 UNC	160~210	1-5/8-8 UN	1800~2200
7/8-9 UNC	280~330	1-3/4-8 UN	2200~2600
1-8 UNC	420~500	1-7/8-8 UN	2800~3300
1-1/8-8 UN	500~600	2-8 UN	3500~4200
