PSL1-4 Manual Operation Mud Valve 2" And 4" 5000psi With Welding Thread And Union Connections Material Class AA/BB/CC/DD/EE/FF

Production Description:

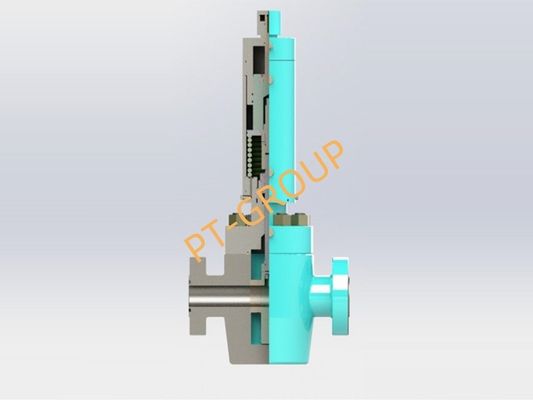

gate valve and check valve Mud valve

Mud valve: soft seal mud valve Structure features: The mud valve produced by our company has reliable design and heavy load performance under corrosion conditions, which is widely used in some oilfield applications, including: 1, riser manifold: 2, manifold block valve for installation of pumps: 3, high pressure mud mixing pipeline: 4, high pressure drilling system block valve: 5, wellhead:

6, drilling treatment and fracturing analysis :7, production manifold: 8, production gathering system: 9, production flow line can be exchanged with DEMCO mud valve parts of the United States Cameron Company field repair capacity: seal.

Mud valves are available in two seal types: hard seal and soft seal Mud valve structure Features: The valve cover can be easily removed to check the internal components, and the parts can be replaced without removing the valve from the line: the design is simple, so that special tools are not required for fast and easy service.

The sealing surface of valve plate and seat is sprayed with carbide, which has a long service life.

Floating plate design: The use of open rod structure, so that the operator can easily understand whether the valve is open or closed.

Stem packing can be replaced without removing the valve cover.

A flat plate connected to the T-slot stem allows the gate to float towards the seat, which is tightly pressure-sealed.

During field repair, the valve cover can be easily removed to check the internal components, and the parts can be replaced without removing the valve from the line.
