F-800 Drilling Triplex Mud Pump API Standard
Introduction

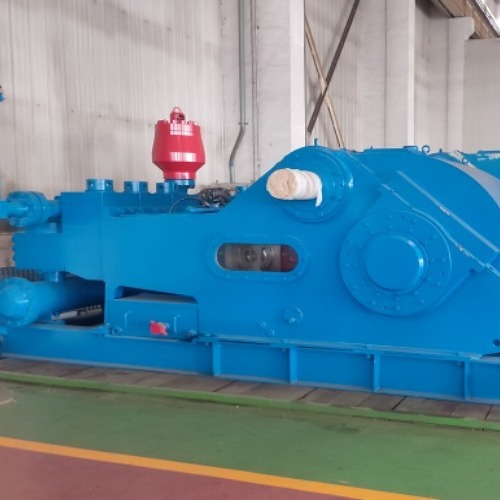

F-800 Triplex Mud Pump features of solid and compact structure, small volume, and good and reliable performance. F-800 Triplex Mud Pump can meet the drilling requirements such as high pressure and big displacements whether in land drilling or off-shore drilling.
F-800 Triplex Mud Pump has a longer stroke and can be operated at a lower stroke, thus improving the water-supplying performance effectively and extending the lifetime of mud pump fluid end parts greatly.
The suction pulsation dampener of the Triplex Mud Pump has an advanced structure that is reliable to use and can make the pump realize its best suction performance.
Parameters of F-800 Triplex Mud Pump
| Liner Size | in | 6 1/2 | 6 1/4 | 6 | 5 1/2 | 5 | 4 1/2 | 4 |
| Discharge Pressure | Mpa | 14.6 | 15.8 | 17.2 | 20.4 | 24.7 | 30.5 | 34.5 |
| psi | 2118 | 2290 | 2495 | 2915 | 3582 | 4424 | 5000 | |
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||
| 160 | 636 (853) |
39.21 (621.4) |
36.26 (574.7) |
33.41 (529.5) |
28.07 (444.9) |
23.2 (367.7) |
18.79 (297.8) |
14.85 (235.2) |
| *150 | *597 (800) |
36.76 (582.6) |
34 (538.9) |
31.32 (496.4) |
26.32 (417.1) |
21.75 (344.7) |
17.62 (279.2) |
13.92 (220.6) |
| 140 | 557.2 (693.3) |
34.3 (543.6) |
31.73 (502.9) |
29.23 (463.3) |
24.57 (389.4) |
20.3 (321.7) |
16.45 (260.7) |
12.99 (205.8) |
| 130 | 517.4 (693.3) |
31.85 (504.8) |
29.47 (467.1) |
27.14 (430.1) |
22.81 (361.5) |
18.85 (298.7) |
15.27 (242.0) |
12.06 (191.1) |
| 120 | 477.6 (640) |
29.4 (465.9) |
27.2 (431.1) |
25.06 (397.2) |
21.06 (333.8) |
17.4 (275.7) |
14.1 (223.4) |
11.14 (176.5) |
| 110 | 437.8 (587.7) |
26.95 (427.1) |
24.93 (395.1) |
22.97 (364.0) |
19.3 (305.9) |
15.95 (252.8) |
12.92 (204.7) |
10.21 (161.8) |
| 1 | 3.98 (5.33) |
0.245 (3.88) |
0.227 (3.59) |
0.209 (3.31) |
0.175 (2.77) |
0.145 (2.29) |
0.117 (1.85) |
0.093 (1.47) |
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||
| --The * present the recommendatory SPM and input power when mud pump runs continuously. | ||||||||
Specification of F-800 Triplex Mud Pump
Rated input Power: 800 HP
Stroke Per Minute: 150 SPM
Stroke Length: 229 mm (9")
Gear Ratio: 4.185:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#6
Max.Liner Size : (6 1/2")
Suction Inlet Flange: 254 mm (10") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)
