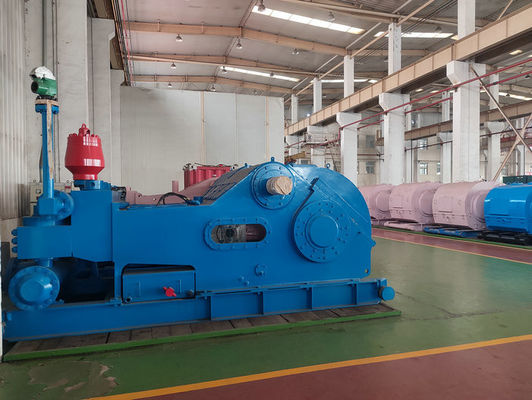

W-446 Horizontal Triplex Piston Mud Pump
Triplex Piston Mud Pump Specification :
1. Triplex Piston Mud Pump is mainly used in oil and water well drilling.
2. OEM, design install with diesel engine or motor to supply the power in your drilling project.
3. Different models for you to choose.
4. API standard, and China standard.
Parameters of Triplex Piston Mud Pump
| Liner Size |
in |
6 |
5 3/4 |
5 1/2 |
5 1/4 |
5 |
4 1/2 |
4 |
| Discharge Pressure |
MPa |
9.3 |
10.1 |
11.0 |
12.1 |
13.4 |
16.5 |
20.7 |
| psi |
1349 |
1465 |
1595 |
1755 |
1943 |
2393 |
3000 |
| Stroke per Minute SPM |
Power kW(HP) |
Displacement L/s(GPM) |
| 260 |
373
(500)
|
36.1
(572.2)
|
33.2
(526.2)
|
30.4
(481.4)
|
27.7
(439.0)
|
25.1
(397.8)
|
20.3
(321.8)
|
16.1
(255.2)
|
| 220 |
316
(423)
|
30.6
(485.0)
|
28.1
(445.4)
|
25.7
(407.3)
|
23.4
(370.9)
|
21.2
(336.0)
|
17.2
(272.6)
|
13.6
(215.6)
|
| 180 |
258
(346)
|
25.0
(396.3)
|
23.0
(364.6)
|
21.0
(332.9)
|
19.2
(304.3)
|
17.4
(275.8)
|
14.1
(223.5)
|
11.1
(175.9)
|
| 140 |
201
(269)
|
19.5
(309.1)
|
17.9
(283.7)
|
16.4
(259.9)
|
14.9
(236.2)
|
13.5
(214.0)
|
10.9
(172.8)
|
8.6
(136.3)
|
| 100 |
143
(192)
|
13.9
(220.3)
|
12.8
(202.9)
|
11.7
(185.4)
|
10.6
(168.0)
|
9.7
(153.7)
|
7.8
(123.6)
|
6.2
(98.3)
|
| 60 |
86
(115)
|
8.3
(131.6)
|
7.7
(120.5)
|
7.0
(111.0)
|
6.4
(101.4)
|
5.8
(91.9)
|
4.7
(74.5)
|
3.7
(58.6)
|
| 1 |
1.43
(1.92)
|
0.139
(2.203)
|
0.128
(2.029)
|
0.117
(1.854)
|
0.106
(1.680)
|
0.097
(1.537)
|
0.078
(1.236)
|
0.062
(0.983)
|
| ● Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. |
| Liner Size |
in |
6 |
5 3/4 |
5 1/2 |
5 1/4 |
5 |
4 1/2 |
4 |
| Displacement |
gal/rev |
2.205 |
2.025 |
1.851 |
1.686 |
1.527 |
1.239 |
0.980 |
| L/s |
30.6 |
28.1 |
25.7 |
23.4 |
21.2 |
17.2 |
13.6 |
| Discharge Pressure |
psi |
1595 |
1725 |
1900 |
2074 |
2291 |
2828 |
3000 |
| MPa |
11.0 |
11.9 |
13.1 |
14.3 |
15.8 |
19.5 |
20.7 |
| ● Performance data are calculated by 220 spm. |
Triplex Piston Mud Pump Details
Pinion Shaft
It is made of forge alloy steel, herringbone gears (integral) are machined
on the shaft and it adopts a medium hard tooth surface. There is a shaft
extension at both ends, where bell pulleys or chain wheels may be installed.
Crosshead
The crosshead is made of the one-piece cast with nodular cast iron, so the
crosshead has good abrasion resistance. The structure of top and bottom
guidance is adopted for crossheads to regulate the concentricity by

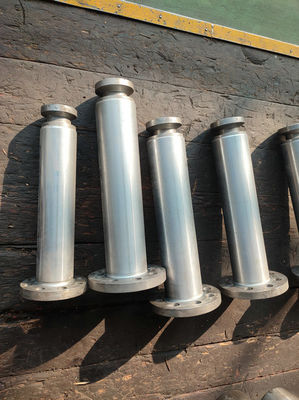

adding a gasket at the bottom guidance. The extension rods are connected
to the crossheads by flange bolts with pin holes, to ensure the
concentricity of the crosshead and the extension rods. The packing adopts
a double layer sealing structure, which realizes good seal performance.
Fluid Cylinder
The cylinder is made of forge alloy steel and adopts a straight-way
structure. The hydraulic cylinder has a small size and higher volume
efficiency. The cylinder surface is processed by chemical plating in ordtoase the corrosion resistance. The three hydraulic cylinders of a
pump are interchangeable.
Liner
W440/446(500HP) Mud Pump Oil Rig have the same liner O.D. The liners are
mounted tightly on the end face of the hydraulic cylinder by using squareness
capping and bolts. Sealing between the liner and the hydraulic cylinder is
realized by rectangular rubber gaskets.
Lubrication System
The pump adopts forced lubrication. In the oil tank, there is a gear oil
pump, which transmits pressure oil to crossheads guidance as well as the
bearings, to realize forced lubrication and cooling.
