Name: 13 Inch Double Studded Adapter Grooved Flange Adapter With A Through Bore
Brand: Hebei Pantu
SKU: C.5.14
Rating: 4.8 (162 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Double Studded Grooved Flange Adapter

Size: 13 5/8" 10,000 Psi X 9" 3,000 Psi.

Rated Working Pressure: 13 5/8" 10,000 Psi X 9" 3,000 Psi.

Processing Type: Forging

Standard: API 6A

Working Medium: Oil, Natural Gas&mud

Highlight:

13 Inch Double Studded Adapter

13 Inch Grooved Flange Adapter

A Through Bore Grooved Flange Adapter

Basic Infomation

Place of Origin: China

Brand Name: Hebei Pantu

Certification: API 6A

Model Number: C.5.14

Payment & Shipping Terms

Packaging Details: Iron Case

Delivery Time: 7 work days

Payment Terms: T/T

Supply Ability: 5 sets per 3 months

Gallery

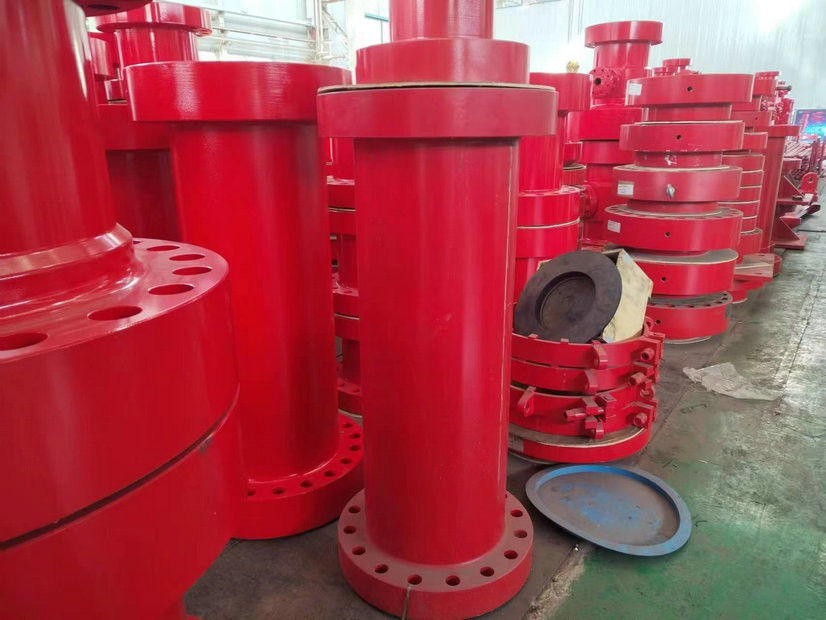

13 Inch Double Studded Adapter Grooved Flange Adapter With A Through Bore

Product Description

Double Studded Grooved Flange Adapter 13 5/8" 10,000 Psi X 9" 3,000 Psi.

Double Studded Adapter Flange (DSAF) or Double Studded Adapter (DSA) is a flange with a through bore and a ring groove on each side, drilled and tapped bolt hole sets on both sides and tapped end studs complete with nuts fitted on both sides. Unlike a spacer, the two sides are usually different in size and/or pressure rating. Double studded adapter flanges are commonly utilised to connect and adapt flanges with different nominal sizes, pressure ratings, and configurations.

Double Studded Grooved Flange Adapter Parameter

C.5.1	13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2	13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3	13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4	13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5	13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6	13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7	13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8	13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9	13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10	13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11	13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12	13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13	13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14	13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15	13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16	4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17	4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18	4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19	2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20	2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21	3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22	3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi

FEATURES:

Double Studded Grooved Flange Adapter is the part that is often used in the wellhead system.
Double Studded Grooved Flange Adapter is designed and manufactured in accordance with API 6A standard
Double Studded Grooved Flange Adapter is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
