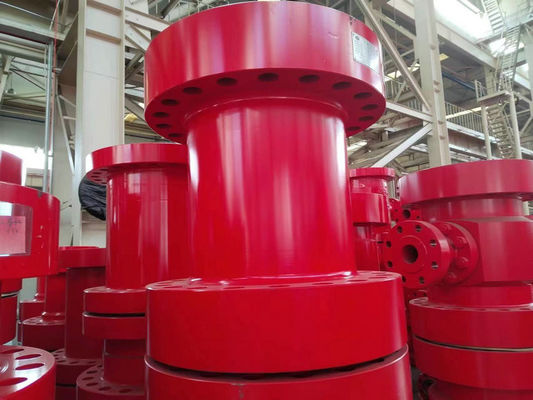

Forging Double Studded Adapter 2 1/16" 2,000 psi x 3 1/8" 5,000 psi
A stud adapter (DSA) is an oilfield coupling used to connect two drilling components with different threaded connections. Adapters typically consist of a central hub with two sets of studs on opposite sides. Studs are designed to match the threaded connections of the parts being connected. When properly installed, a DSA forms a secure connection that allows the transfer of fluids, gases, and other materials between components. DSAs are commonly used in drilling and production applications in the oil and gas industry.
Forging Double Studded Adapter Parameter
C.5.1 | 13-5/8” 10,000 psi x 13-5/8” 5,000 psi. |
C.5.2 | 13-5/8” 10,000 psi x 13-5/8” 3,000 psi. |
C.5.3 | 13-5/8” 10,000 psi x 13-5/8” 2,000 psi. |
C.5.4 | 13-5/8” 10,000 psi x 11” 10,000 psi. |
C.5.5 | 13-5/8” 10,000 psi x 11” 5,000 psi. |
C.5.6 | 13-5/8” 10,000 psi x 11” 3,000 psi. |
C.5.7 | 13-5/8” 10,000 psi x 11” 2,000 psi. |
C.5.8 | 13 5/8” 10,000 psi x 7-1/16” 10,000 psi. |
C.5.9 | 13 5/8” 10,000 psi x 7-1/16” 5,000 psi. |
C.5.10 | 13-5/8” 10,000 psi x 7-1/16” 3,000 psi. |
C.5.11 | 13-5/8” 10,000 psi x 7-1/16” 2,000 psi. |
C.5.12 | 13 5/8” 10,000 psi x 9” 10,000 psi. |
C.5.13 | 13 5/8” 10,000 psi x 9” 5,000 psi. |
C.5.14 | 13 5/8” 10,000 psi x 9” 3,000 psi. |
C.5.15 | 13 5/8” 10,000 psi x 9” 2,000 psi. |
C.5.16 | 4-1/16” 10,000 psi x 3-1/16” 10,000 psi. |
C.5.17 | 4-1/16” 10,000 psi x 3-1/8” 5,000 psi. |
C.5.18 | 4-1/16” 5,000 psi x 3-1/8” 5,000 psi. |
C.5.19 | 2- 1/16”, 5000 psi x 3 1/8” 5000 psi |
C.5.20 | 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi |
C.5.21 | 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi |
C.5.22 | 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi |
FEATURES:
