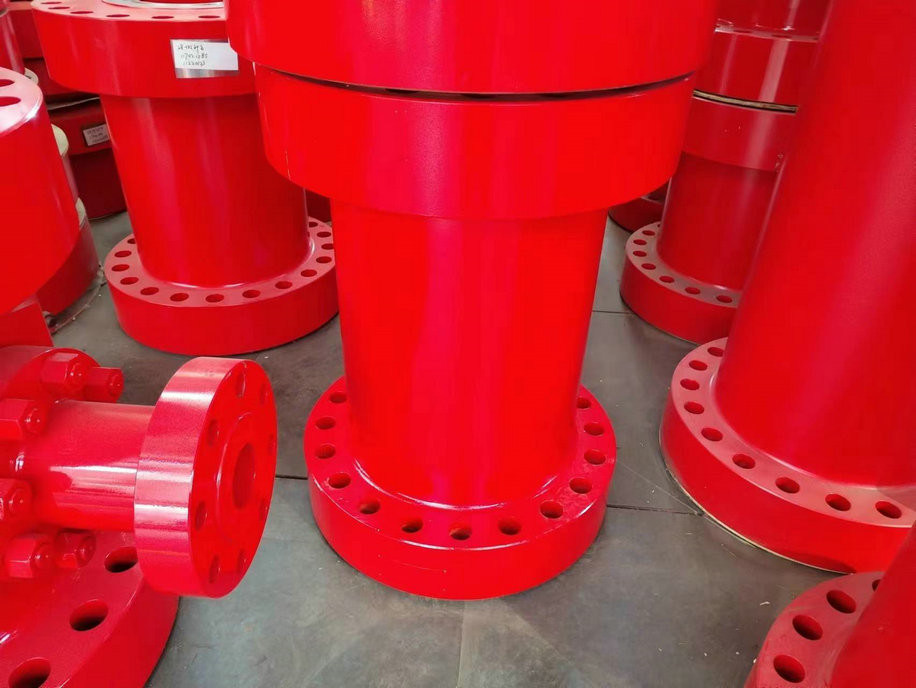

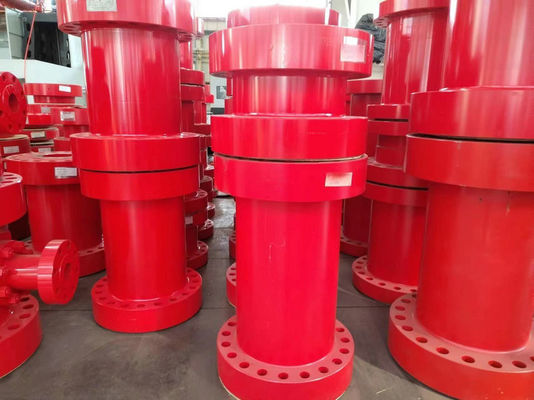

DSA Double Studded Adapter 3- 1/8" 3,000 psi x 3 1/8" 5,000 psi
DSA Double Studded Adapter is a combination of flanges of different sizes and pressure ratings. DSA Double Studded Adapter for reliable and consistent performance on their production system. Our DSA Double Studded Adapter are in various sizes and pressure ratings as per customer's specified thickness, consistent with design considerations. It is an important device to connect the different flange for wellhead, so the material of the body and studs and nuts shall conform the related requirements. The size is by API flange certification.
DSA Double Studded Adapter Parameter
| C.5.1 | 13-5/8” 10,000 psi x 13-5/8” 5,000 psi. |
| C.5.2 | 13-5/8” 10,000 psi x 13-5/8” 3,000 psi. |
| C.5.3 | 13-5/8” 10,000 psi x 13-5/8” 2,000 psi. |
| C.5.4 | 13-5/8” 10,000 psi x 11” 10,000 psi. |
| C.5.5 | 13-5/8” 10,000 psi x 11” 5,000 psi. |
| C.5.6 | 13-5/8” 10,000 psi x 11” 3,000 psi. |
| C.5.7 | 13-5/8” 10,000 psi x 11” 2,000 psi. |
| C.5.8 | 13 5/8” 10,000 psi x 7-1/16” 10,000 psi. |
| C.5.9 | 13 5/8” 10,000 psi x 7-1/16” 5,000 psi. |
| C.5.10 | 13-5/8” 10,000 psi x 7-1/16” 3,000 psi. |
| C.5.11 | 13-5/8” 10,000 psi x 7-1/16” 2,000 psi. |
| C.5.12 | 13 5/8” 10,000 psi x 9” 10,000 psi. |
| C.5.13 | 13 5/8” 10,000 psi x 9” 5,000 psi. |
| C.5.14 | 13 5/8” 10,000 psi x 9” 3,000 psi. |
| C.5.15 | 13 5/8” 10,000 psi x 9” 2,000 psi. |
| C.5.16 | 4-1/16” 10,000 psi x 3-1/16” 10,000 psi. |
| C.5.17 | 4-1/16” 10,000 psi x 3-1/8” 5,000 psi. |
| C.5.18 | 4-1/16” 5,000 psi x 3-1/8” 5,000 psi. |
| C.5.19 | 2- 1/16”, 5000 psi x 3 1/8” 5000 psi |
| C.5.20 | 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi |
| C.5.21 | 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi |
| C.5.22 | 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi |
