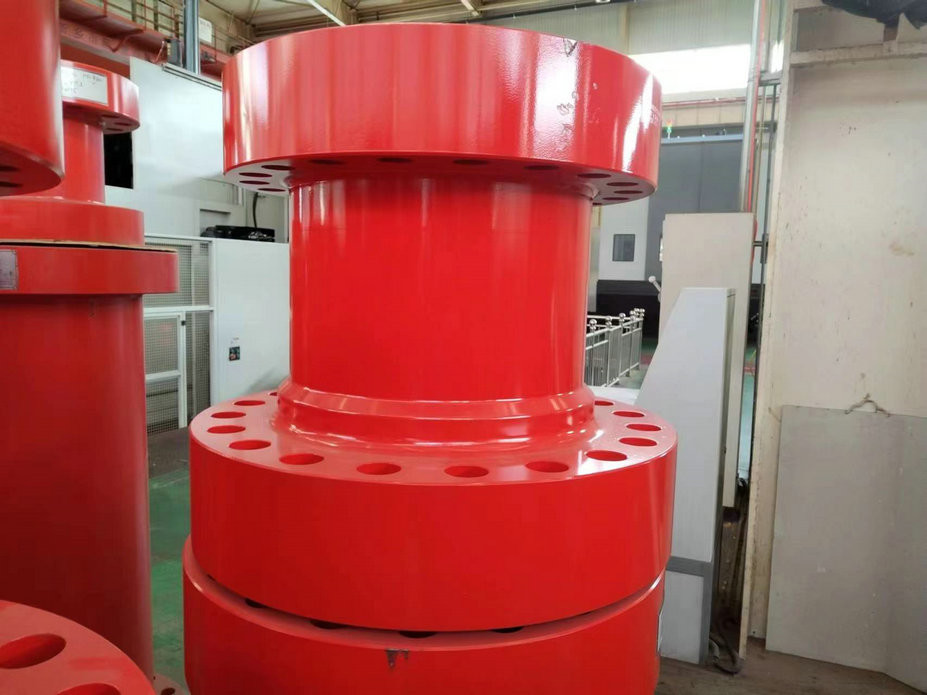

10000 Psi Flange Coupling Adapter Double Studded Drilling Equipment

1 set
MOQ
Negitionable
Price
10000 Psi Flange Coupling Adapter Double Studded Drilling Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Double Studded Flange Coupling Adapter
Size: 4-1/16" 10,000 Psi X 3-1/8" 5,000 Psi.
Rated Working Pressure: 4-1/16" 10,000 Psi X 3-1/8" 5,000 Psi.
Processing Type: Forging
Standard: API 6A
Working Medium: Drilling Equipment
Highlight:

Double Studded Flange Coupling Adapter

,

10000 Psi Double Studded Adapter

,

10000 Psi Flange Coupling Adapter

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 6A
Model Number: C.5.17
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

Double Studded Flange Coupling Adapter 4-1/16" 10,000 Psi X 3-1/8" 5,000 Psi.



A Double Studded Adapter (DSA) is a specialized device used in the oil and gas industry for connecting two pieces of drilling equipment with different connections. The adapter is designed to connect two components with a flange connection, but with different bolt patterns or thread types. The DSA consists of a central hub with bolts on opposing sides, where each set of bolts matches a specific thread or bolt pattern. The central hub of the DSA is typically manufactured with a standard size, which allows it to be interchangeable with different equipment. DSAs are commonly used in applications such as wellhead and drilling equipment, allowing different types of equipment to be easily and safely connected.



Double Studded Flange Coupling Adapter Parameter



C.5.1 13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2 13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3 13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4 13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5 13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6 13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7 13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8 13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9 13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10 13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11 13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12 13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13 13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14 13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15 13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16 4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17 4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18 4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19 2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi



FEATURES:



  1. Double Studded Flange Coupling Adapter is the part that is often used in the wellhead system.
  2. Double Studded Flange Coupling Adapter is designed and manufactured in accordance with API 6A standard
  3. Double Studded Flange Coupling Adapter is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
  4. Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
