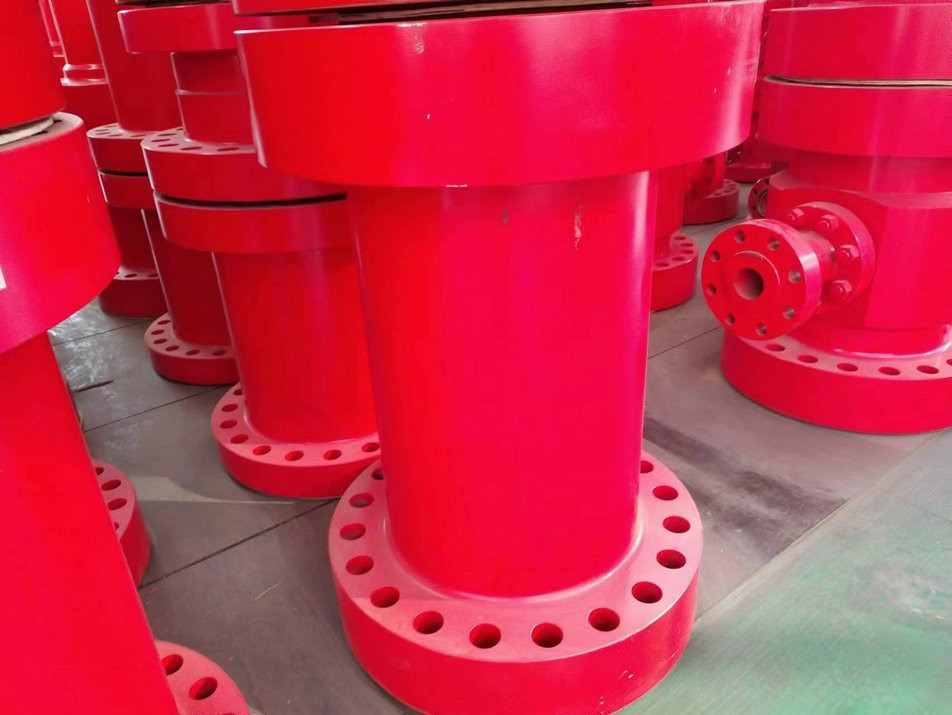

2000 Psi Adapter Spool Flange Double Studded In Gas Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Double Studded Grooved Flange
Size: 2 1/16" 5000 Psi X 3 1/8" 5000 Psi
Rated Working Pressure: 2 1/16" 5000 Psi X 3 1/8" 5000 Psi
Processing Type: Forging
Standard: API 6A
Working Medium: Oil, Natural Gas&mud
Highlight:

2000 Psi Adapter Spool Flange

,

2000 Psi Double Studded Adapter

,

Gas Industry Double Studded Adapter

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 6A
Model Number: C.5.19
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

Double Studded Adapter 13-5/8" 10,000 psi x 13-5/8”5,000 psi.



A Double Studded Grooved Flange is a type of oilfield coupling that is used to connect two drilling components with different thread connections. The adapter typically consists of a central hub with two sets of threaded studs on opposite sides. The studs are designed to match the thread connections of the components being joined. When properly installed, the DSA forms a secure connection that allows for the transfer of fluids, gases, and other materials between the components. DSAs are commonly used in the oil and gas industry for drilling and production applications.



Double Studded Grooved Flange​ Parameter



C.5.1 13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2 13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3 13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4 13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5 13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6 13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7 13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8 13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9 13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10 13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11 13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12 13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13 13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14 13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15 13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16 4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17 4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18 4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19 2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi



FEATURES:



  1. Double Studded Grooved Flange is the part that is often used in the wellhead system.
  2. Double Studded Grooved Flange is designed and manufactured in accordance with API 6A standard
  3. Double Studded Grooved Flange is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
  4. Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
