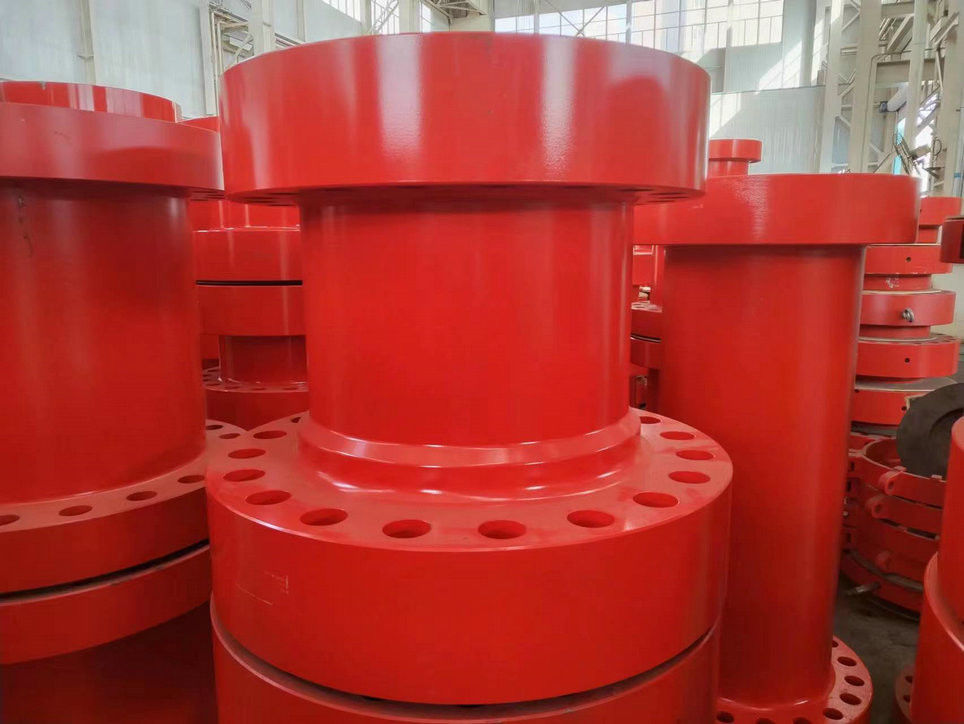

API 6A Double Studded Adapter Easy Safe Cast Iron Flange Adapter

1 set
MOQ
Negitionable
Price
API 6A Double Studded Adapter Easy Safe Cast Iron Flange Adapter
Features Gallery Product Description Request A Quote
Features
Specifications
Name: API 6A Double Studded Adapter
Size: 4-1/16" 10,000 Psi X 3-1/16" 10,000 Psi.
Rated Working Pressure: 4-1/16" 10,000 Psi X 3-1/16" 10,000 Psi.
Processing Type: Forging
Standard: API 6A Standard
Working Medium: Oil, Natural Gas&mud
Highlight:

Double Studded Adapter Easy Safe

,

Easy Safe Cast Iron Flange Adapter

,

API 6A Double Studded Adapter

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 6A
Model Number: C.5.16
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

API 6A Double Studded Adapter 4-1/16" 10,000 psi x 3-1/16" 10,000 psi.



API 6A Double Studded Adapter is a specialized device used in the oil and gas industry to connect two pieces of drilling equipment with different connections. This adapter is designed to connect two components with a flanged connection, but with different bolt patterns or thread types. A DSA consists of a central hub and bolts on opposite sides, where each set of bolts is matched to a specific thread or bolt pattern. The central hub of a DSA is usually manufactured in a standard size, which makes it interchangeable with different devices. Commonly used in applications such as wellheads and drilling equipment, DSAs can easily and safely connect different types of equipment.



Parameter



C.5.1 13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2 13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3 13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4 13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5 13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6 13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7 13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8 13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9 13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10 13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11 13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12 13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13 13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14 13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15 13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16 4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17 4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18 4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19 2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi



FEATURES:



  1. API 6A Double Studded Adapter is the part that is often used in the wellhead system.
  2. API 6A Double Studded Adapter is designed and manufactured in accordance with API 6A standard
  3. API 6A Double Studded Adapter is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
  4. Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
