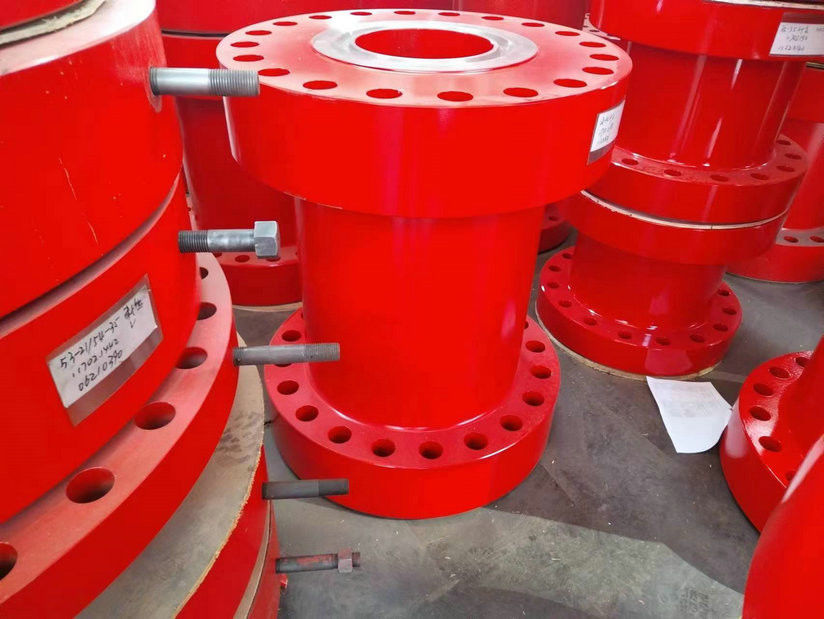

Red Double Studded Adapter Mechanical Flange Adaptor For Oilfield

Large Image : Red Double Studded Adapter Mechanical Flange Adaptor For Oilfield

Product Details:

Place of Origin:	China
Brand Name:	Hebei Pantu
Certification:	API 6A
Model Number:	C.5.8

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negitionable
Packaging Details:	Iron Case
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	5 sets per 3 months

Contact Now

Red Double Studded Adapter Mechanical Flange Adaptor For Oilfield

Description

Name:	Theaded Flange Adapter	Size:	13 5/8" 10,000 Psi X 7-1/16" 10,000 Psi.
Rated Working Pressure:	13 5/8" 10,000 Psi X 7-1/16" 10,000 Psi.	Processing Type:	Forging
Standard:	API 6A	Working Medium:	Gas&mud
Highlight:	Red Double Studded Adapter , Red Mechanical Flange Adaptor , Oilfield Mechanical Flange Adaptor

Theaded Flange Adapter 13 5/8" 10,000 Psi X 7-1/16" 10,000 Psi.

DSA - Double Studded Theaded Flange Adapter is the part that is often used in the wellhead system, DSA is designed and manufactured in
accordance with API 6A standards,DSA usually has double studded flange connections. we have all sizes and pressure ratings DSA used for oilfield applications.

Parameter of Theaded Flange Adapter

C.5.1	13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2	13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3	13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4	13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5	13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6	13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7	13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8	13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9	13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10	13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11	13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12	13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13	13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14	13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15	13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16	4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17	4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18	4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19	2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20	2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21	3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22	3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi

FEATURES:

DSA - Threaded Flange Adapter is the part that is often used in the wellhead system.
DSA Theaded Flange Adapter is designed and manufactured in accordance with API 6A standard
DSA Theaded Flange Adapter is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
