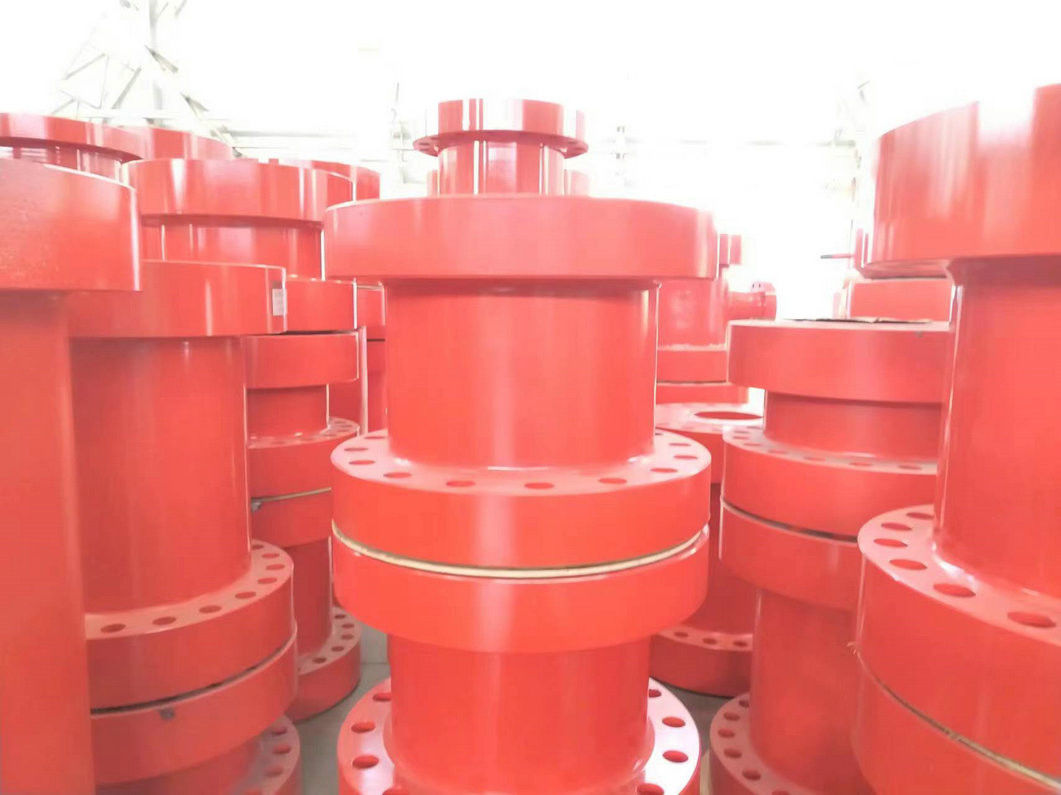

Wellhead Drilling Spool Adapter DSAF Universal Flange Adaptor

1 set
MOQ
Negitionable
Price
Wellhead Drilling Spool Adapter DSAF Universal Flange Adaptor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DSAF DSA
Size: 13 5/8" 10,000 Psi X 9" 5,000 Psi.
Rated Working Pressure: 13 5/8" 10,000 Psi X 9" 5,000 Psi.
Processing Type: Forging
Standard: API 6A
Working Medium: Wellhead
Highlight:

Wellhead Drilling Spool Adapter

,

Wellhead Universal Flange Adaptor

,

DSAF Universal Flange Adaptor

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 6A
Model Number: C.5.13
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

13 5/8" 10,000 Psi X 9" 5,000 Psi. DSAF DSA For Wellhead



All of our double-studded adapter flanges(DSAF) are fully designed, manufactured, and tested according to API 6A and NACE MR0175 standards. The standard material is high-quality integral forged AISI4130 alloy. Available in sizes from 1-13/16" to 30" and working pressure up to 15000PSI. For sour service, all ring grooves can be inlaid with stainless steel SS316 or Inconel 625 for better protection. The studs and nuts are available with Zinc Coated, Cadmium Coated, or Xylan Coated. Other sizes, material, and pressure ratings are also available upon request. Aside from API6A double studded adapter flanges(DSAF), we also produce and supply other types API 6A flanges, such as threaded flanges, spacer spool flanges, blind flanges, companion flanges, target flanges, test flanges, and adapter spools for all client needs.



DSAF DSA Parameter



C.5.1 13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2 13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3 13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4 13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5 13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6 13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7 13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8 13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9 13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10 13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11 13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12 13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13 13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14 13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15 13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16 4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17 4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18 4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19 2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi



FEATURES:



  1. DSAF DSA - Double Studded Adapter flange is the part that is often used in the wellhead system.
  2. DSAF DSA is designed and manufactured in accordance with API 6A standard
  3. DSAF DSA is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
  4. Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
