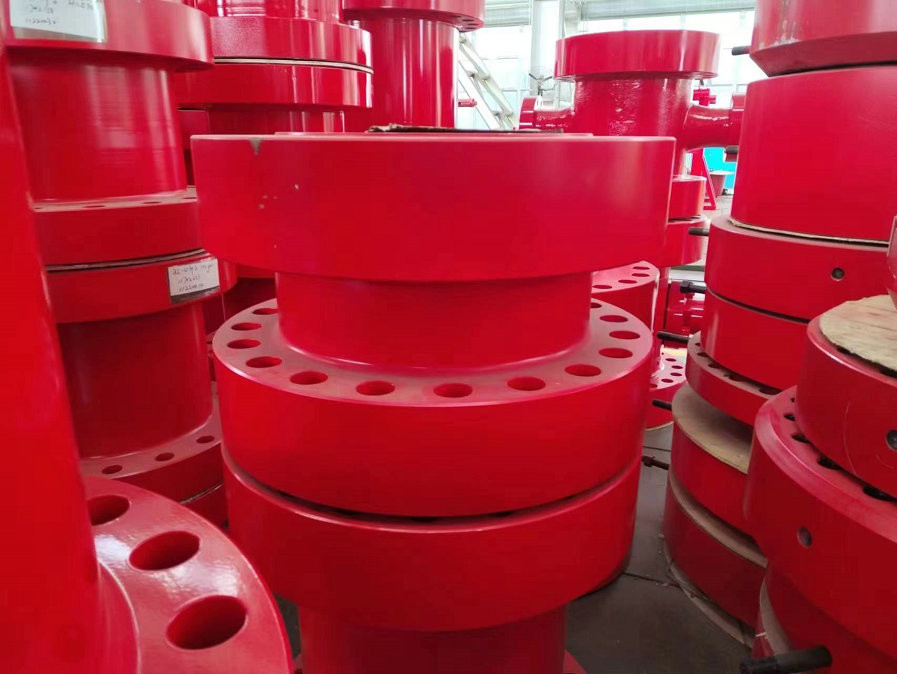

Metal Double Studded Adapter Grooved Adaptor Flange For Oil Drilling

Metal Double Studded Adapter Grooved Adaptor Flange For Oil Drilling
Metal Double Studded Adapter Grooved Adaptor Flange For Oil Drilling

Large Image :  Metal Double Studded Adapter Grooved Adaptor Flange For Oil Drilling

Product Details:
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 6A
Model Number: C.5.12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negitionable
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Contact Now

Metal Double Studded Adapter Grooved Adaptor Flange For Oil Drilling

Description
Name: Double Studded Adapter Flange Size: 13 5/8" 10,000 Psi X 9" 10,000 Psi.
Rated Working Pressure: 13 5/8" 10,000 Psi X 9" 10,000 Psi. Processing Type: Forging
Standard: API 6A Working Medium: Oil, Natural Gas&mud
Highlight:

Metal Double Studded Adapter

,

Oil Drilling Double Studded Adapter

,

Oil Drilling Grooved Adaptor Flange

Double Studded Adapter Flange 13 5/8" 10,000 Psi X 9" 10,000 Psi.



Double studded adapter flange is a combination of flanges of different sizes and pressure ratings.

we supply ideal DSA for reliable and consistent performance on their production system. Our adapter flanges are in various sizes and pressure ratings as per the customer's specified thickness, consistent with design considerations. It is an important device to connection the different flange for wellhead, so the material of the body and studs and nuts shall conform the related requirements. The size is by API 16A flange certification.



Double Studded Adapter Flange Parameter



C.5.1 13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2 13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3 13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4 13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5 13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6 13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7 13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8 13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9 13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10 13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11 13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12 13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13 13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14 13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15 13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16 4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17 4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18 4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19 2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi



FEATURES:



  1. Double Studded Adapter Flange is the part that is often used in the wellhead system.
  2. Double Studded Adapter Flange is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
  3. Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
