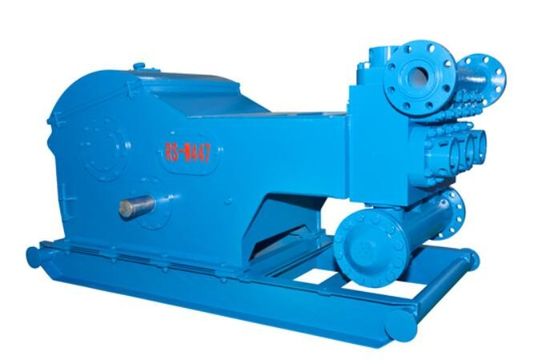

W-447C 500HP Heavy Duty Mud Pump Triplex Single Acting
W-447C Heavy Duty Mud Pump can be widely used in various operations of oilfields. Heavy Duty Mud Pump adopts a plunger structure with a plunger diameter of 170mm, which is suitable for workover operation, shallow good drilling, geological crossing, etc.
W-447C 500HP Heavy Duty Mud Pump Structural Characters:
· The maximum plunger diameter is 170mm and the maximum displacement is 48.4L/s.
· Forging and welding full balance crankshaft, lightweight, high strength.
· Integral herringbone tooth, medium hard tooth surface.
· The frame is of steel plate welding structure, which is annealed after welding, with good rigidity and high strength.
Parameters of W-447C 500HP Heavy Duty Mud Pump
|
Plunger diameter 170mm |
Stroke per Minute SPM | 300 | 280 | 260 | 240 | 220 | 200 | 180 | 160 |
| Discharge Pressure (MPa) |
5.55 |
5.94 |
6.39 |
6.94 |
7.57 |
8.32 |
9.24 |
10.00 |
|
| Displacement (m3/min) | 3.63 | 3.39 | 3.15 | 2.90 | 2.66 | 2.42 | 2.18 | 1.94 | |
| ● Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||||
W-447C 500HP Heavy Duty Mud Pump Specification :
Rated Input Power: 373 kW (500 HP)Max.Pump speed: 260 SPM
stroke Length: 177.8 mm (7")Gear Ratio: 4.578:1
Rated working pressure: 21 MPa (3000 psi)Valve: API #6
Suction Inlet Flange: 203.2 mm (8") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange,21 MPa (3000 psi)Pinion Shaft Size: 95.2 mm(3.75")
Overall Dimension (L×WxH):2494×1271×1330 mm3(8.18×4.17×4.63 ft3)Approx Weight : 4697 kg (10355 lb)
