API 16A Annular Blowout Preventer BOP Well Drilling
What is annular bop

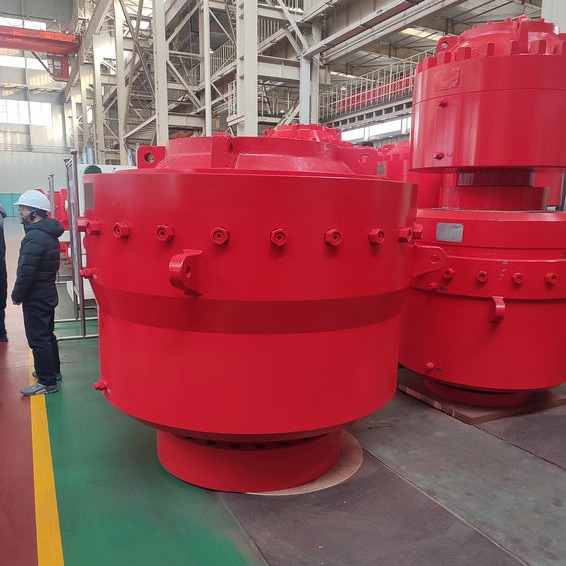

The main feature of the Annular Blowout Preventer is its capability to close and seal on almost any size tools in drill pipe, tool joints, drill collars within most of its range. Annular Blowout Preventer is a large valve used to control wellbore fluids, usually installed above the ram preventers that forms a seal in the annular space between the pipe and wellbore. In this type of valve, the sealing element is similar to large rubber doughnut that is squeezed inside to seal on drill pipe.
Annular Blowout Preventer vs RAM Blowout Preventer
The annular blowout preventer performs several functions in drilling operations. It seals the annular space between the tubing, casing, and drill pipes. It also helps maintain the seal when the casing, tubing, or drill pipes are out of the drill hole. Unlike RAM blowout preventers, annular BOPs can seal various pipes of different sizes.
What is an annular blowout preventer? When asked that question, you’ll have the answer. If you have a drilling project, consider getting a blowout preventer from a reputable company like BOP Products. We offer high-quality products and services to ensure the safety of workers.
Annular Blowout Preventer specs
Item |
Specification for Annular BOP |
|||||||||
Size and model |
7 1/16″ -3000psi |
7 1/16″ -5000psi |
9″ -3000psi |
9″ -5000psi |
11″ -3000psi |
11″ -5000psi |
13 5/8″ -3000psi |
13 5/8″ -5000psi |
20 3/4″ -3000psi |
21 1/4″ -5000psi |
mm/in Bore (mm/in.) |
179.4 7 1/16 |
179.4 7 1/16 |
228.6 9 |
228.6 9 |
279.4 11 |
279.4 11 |
346.1 13 5/8 |
346.1 13 5/8 |
527 20 3/4 |
539.8 21 1/4 |
Rated working pressure (MPa/psi) |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
Hydrostatic pressure testing pressure (MPa/psi) |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
31.5 4,500 |
70 10,000 |
Hydraulic-controlled rated working pressure (MPa/psi) |
21/3,000 |
|||||||||
Recommended hydraulic working pressure seal pipe (MPa/psi) |
1,218~1,522psi |
|||||||||
Max. working pressure seal well without a pipe in (MPa/psi) |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
Recommended hydraulic working pressure seal well without a pipe in (MPa/psi) |
≤10 .5/1,500 |
|||||||||
Open Max. oil volume (L) |
15 |
15 |
22.8 |
33 |
39 |
56 |
69 |
69 |
110 |
181 |
Close Max. oil volume (L) |
21 |
21 |
34 |
42 |
50 |
72 |
94 |
94 |
173 |
241 |
Lift weight by two lifting rings (t) |
16 |
16 |
16 |
25 |
25 |
25 |
32 |
32 |
32 |
64 |
The outlet of hydraulic oil |
NPT 1” |
|||||||||
Temperature grade of metal |
T-20/250(-29℃~121℃) |
|||||||||
Temperature grade of non-metal |
BAB (-18℃~66℃~93℃) |
|||||||||
Medium material contact with well liquid |
Per to NACE MR-01-75, meet API 16A 4th Edition Standard |
