Name: Hydril Type Drilling Rigs BOP Blowout Preventer 21 1/4" 2000 Psi Hydril MSP Annular Bop API Standard In Conjunction
Brand: pantu
SKU: FHZ54-14
Price: 30000 USD
Availability: InStock
Rating: 4.6 (165 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Hydril Annular Bop

Size: 539.7 Mm 21 1/4"

Pressure: 2000 Psi

Standard: API Standard

Hydrostatic Pressure Testing Pressure (MPa/psi): 70 / 10,000

Hydraulic-controlled Rated Working Pressure (MPa/psi): 21/3,000

Highlight:

21 1/4” Annular Blowout Preventer

Hydril MSP Annular Blowout Preventer

2000 Psi Annular Blowout Preventer

Basic Infomation

Place of Origin: China

Brand Name: pantu

Certification: API 16A

Model Number: FHZ54-14

Payment & Shipping Terms

Packaging Details: Iron Case

Delivery Time: 7 work days

Payment Terms: T/T

Supply Ability: 5 sets per 3 months

Gallery

Hydril Type Drilling Rigs BOP Blowout Preventer 21 1/4" 2000 Psi Hydril MSP Annular Bop API Standard In Conjunction

Product Description

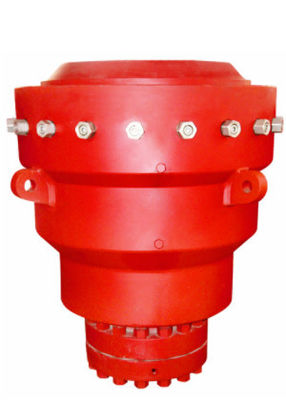

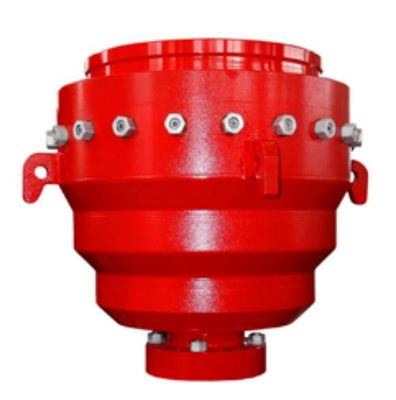

21 1/4" 2000 Psi Hydril MSP Annular Bop API Standard

Hydril Annular Bop Used in conjunction with the hydraulic control system, the annular BOP seals off the annulus of different sizes when pipes are in use in the hole. An annular BOP can also seal off the annular space which is formed by Kelly, coring tool, cables, wire rope, etc. and wellbore when no pipe is in it.

hydril annular bop specifications

(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in the below list)

Item	Specification for Annular BOP
Size and model	7 1/16″ -3000psi	7 1/16″ -5000psi	9″ -3000psi	9″ -5000psi	11″ -3000psi	11″ -5000psi	13 5/8″ -3000psi	13 5/8″ -5000psi	20 3/4″ -3000psi	21 1/4″ -5000psi
Bore (mm/in.)	179.4 7 1/16	179.4 7 1/16	228.6 9	228.6 9	279.4 11	279.4 11	346.1 13 5/8	346.1 13 5/8	527 20 3/4	539.8 21 1/4
Rated working pressure (MPa/psi)	21 3,000	35 5,000	21 3,000	35 5,000	21 3,000	35 5,000	21 3,000	35 5,000	21 3,000	35 5,000
Hydrostatic pressure testing pressure (MPa/psi)	42 6,000	70 10,000	42 6,000	70 10,000	42 6,000	70 10,000	42 6,000	70 10,000	31.5 4,500	70 10,000
Hydraulic-controlled rated working pressure (MPa/psi)	21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi)	1,218～1,522psi
Max. working pressure seal well without a pipe in (MPa/psi)	10.5 1,500	17.5 2,500	10.5 1,500	17.5 2,500	10.5 1,500	17.5 2,500	10.5 1,500	17.5 2,500	10.5 1,500	17.5 2,500
Recommended hydraulic working pressure seal well without a pipe in (MPa/psi)	≤10 .5/1,500
Open Max. oil volume (L)	15	15	22.8	33	39	56	69	69	110	181
Close Max. oil volume (L)	21	21	34	42	50	72	94	94	173	241
Lift weight by two lifting rings (t)	16	16	16	25	25	25	32	32	32	64
The outlet of hydraulic oil	NPT 1”
Temperature grade of metal	T-20/250(-29℃～121℃)
Temperature grade of non-metal	BAB (-18℃~66℃~93℃)
Medium material contact with well liquid	Per to NACE MR-01-75, meet API 16A 4th Edition Standard
