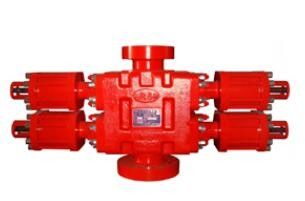

Square Shear Ram Bop Red Shaffer Double Ram Bop In Oil Fields

1 set
MOQ
USD 30000 set
Price
Square Shear Ram Bop Red Shaffer Double Ram Bop In Oil Fields
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Shear Ram Bop Blowout Preventer
Size: 7 1/16 Inch
Pressure: 5000psi
Other Name: Blowout Preventer
Gals To Close (1 Set): 133
Closing Ratio: 10.6
Highlight:

Square Shear Ram Bop

,

Red Shaffer Double Ram Bop

,

Red Shear Ram Bop

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16A
Model Number: 2FZ18-35
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

7 1/16 Inch 5000psi Shear Ram Bop Blowout Preventer



Introduction of Shear Ram Bop Blowout Preventer



The Ram Bop Blowout Preventer is used to close the wellhead during oil testing, workover, completion, and other operations to prevent blowout accidents. It combines the two functions of full seal and half seal. It has the characteristics of simple structure, easy operation, high-pressure resistance, etc., Ram Bop Blowout Preventer is a safety seal wellhead device commonly used in oil fields to prevent blowouts.



Shear Ram Bop Blowout Preventer Paremeter



Model

Gals to Open

(1 set)

Gals to Close

(1 set)

Closing Ratio Assembly Dimension (in) Approx Weight(lb)
Length (L) Width (W) Height (H)
Flg×Flg Std×Std Flg×Std Flg×Flg Std×Std Flg×Std
4 1/16″-20,000psi(Single RS-FS) 1.10 1.13 10.1 70.71 26.97 33.27 18.11 23.82 3491 3147 3319
4 1/16″-20,000psi(Double RS-FS) 1.10 1.13 10.1 70.71 26.97 46.30 31.14 36.85 5742 5398 5570
7 1/16″-20,000psi(Single RS-FS) 7.05 7.26 13.7 112.05 38.27 48.03 24.02 35.83 10891 8951 9921
7 1/16″-20,000psi(Double RS-FS) 7.05 7.26 13.7 112.05 38.27 70.87 47.24 59.06 19826 17886 18812
11″-20,000psi(Single RS-FS) 42.90 44.8 13.2 137.40 47.87 62.60 32.68 47.64 24030 19335 21682
11″-20,000psi(Double RS-FS) 42.9 44.8 13.2 137.40 47.87 90.55 60.63 75.59 41987 37291 39639
18 3/4″-20,000psi(Double RS-FS) 122 133 10.6 183.46 66.69 / / 94.13 / / 87083



Dual Ram Bop Feature



1) Shape Generally, the BOP body is similar to a square, in the middle there is a vertical bore through which the pipes

can pass and the ram cavities in which the ram moves in the horizontal direction.
2)Connection types The three connection types are studded, flange, and clamped top and bottom connections. The sizes of flanges, bolts, clamps, and ring grooves all conform to API standards.
