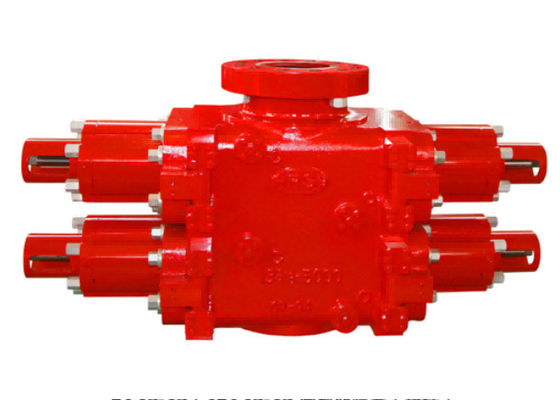

13 5/8"-5000psi Double Ram BOP, Casted, Shaffer Type, With Shear Bonnets
Introduction
Double ram BOP seals annular space between tubing and casing or wellbore
Double ram BOP suspends and stabilizes string double ram BOP with side outlets could be used for choke and blowout
Double ram BOP can be used in operation under pressure
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in below list)
| Item | Specification for Ram BOP | |||||||||||||
| Size and model | 7 1/16″-3000psi | 7 1/16″-5000psi | 7 1/16″-100000psi | 9″-3000psi | 9″-5000psi | 11″-3000psi | 11″-5000psi | 11″-10000psi | 13 5/8″-3000psi | 13 5/8″-5000psi | 13 5/8″-10000psi | 20 3/4″-3000psi | 21 1/4″-5000psi | 26 3/4”-3000psi |
| mm/in Bore (mm/in.) |
179.4 7 1/16 |
179.4 7 1/16 |
179.4 7 1/16 |
228.6 9 |
228.6 9 |
279.4 11 |
279.4 11 |
279.4 11 |
346.1 13 5/8 |
346.1 13 5/8 |
346.1 13 5/8 |
527 20 3/4 |
539.8 21 1/4 |
679.4 26 3/4 |
| Rated working pressure (MPa/psi) |
21 3,000 |
35 5,000 |
70 10,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
70 10,000 |
21 3,000 |
35 5,000 |
70 10,000 |
21 3,000 |
35 5,000 |
21 3,000 |
| Hydrostatic pressure testing pressure (MPa/psi) |
31.5 4,500 |
52.5 7,500 |
105 15,000 |
31.5 4,500 |
52.5 7,500 |
31.5 4,500 |
52.5 7,500 |
105 15,000 |
31.5 4,500 |
52.5 7,500 |
105 15,000 |
31.5 4,500 |
70 10,000 |
31.5 4,500 |
| Hydraulic controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||||||
| Recommended hydraulic working pressure seal pipe (MPa/psi) | 1218~1522psi | |||||||||||||
| Volume for open one set rams | 36 L | |||||||||||||
| Volume for close one set rams | 40 L | |||||||||||||
| Outlet of hydraulic oil | NPT 1” | |||||||||||||
| Temperature grade of metal | T-20/250(-29℃～121℃) | |||||||||||||
| Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||||||
| Medium material contacting with well liquid | Per to NACE MR-01-75, meet API 16A 4th Edition Standard | |||||||||||||
