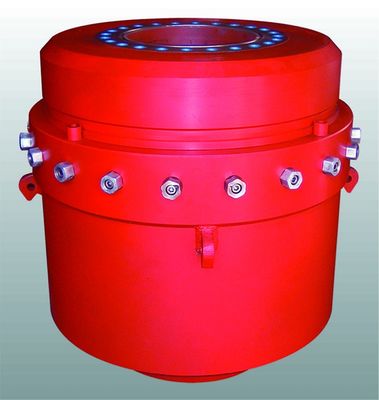

Blowout preventer 21 1/4" 2000 Psi Hydril Annular Bop API Standard
Hydril Annular Bop Used in conjunction with the hydraulic control system, the annular BOP seals off the annulus of different sizes when pipes are in use in the hole. An annular BOP can also seal off the annular space which is formed by Kelly, coring tool, cables, wire rope, etc. and wellbore when no pipe is in it.
hydril annular bop specifications
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in the below list)
Item | Specification for Annular BOP | |||||||||
Size and model |
7 1/16″ -3000psi |
7 1/16″ -5000psi |
9″ -3000psi |
9″ -5000psi |
11″ -3000psi |
11″ -5000psi |
13 5/8″ -3000psi |
13 5/8″ -5000psi |
20 3/4″ -3000psi |
21 1/4″ -5000psi |
Bore (mm/in.) |
179.4 7 1/16 |
179.4 7 1/16 |
228.6 9 |
228.6 9 |
279.4 11 |
279.4 11 |
346.1 13 5/8 |
346.1 13 5/8 |
527 20 3/4 |
539.8 21 1/4 |
Rated working pressure (MPa/psi) |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
Hydrostatic pressure testing pressure (MPa/psi) |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
31.5 4,500 |
70 10,000 |
Hydraulic-controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||
Recommended hydraulic working pressure seal pipe (MPa/psi) | 1,218~1,522psi | |||||||||
Max. working pressure seal well without a pipe in (MPa/psi) |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
Recommended hydraulic working pressure seal well without a pipe in (MPa/psi) | ≤10 .5/1,500 | |||||||||
Open Max. oil volume (L) | 15 | 15 | 22.8 | 33 | 39 | 56 | 69 | 69 | 110 | 181 |
Close Max. oil volume (L) | 21 | 21 | 34 | 42 | 50 | 72 | 94 | 94 | 173 | 241 |
Lift weight by two lifting rings (t) | 16 | 16 | 16 | 25 | 25 | 25 | 32 | 32 | 32 | 64 |
The outlet of hydraulic oil | NPT 1” | |||||||||
Temperature grade of metal | T-20/250(-29℃~121℃) | |||||||||
Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||
Medium material contact with well liquid | Per to NACE MR-01-75, meet API 16A 4th Edition Standard |
