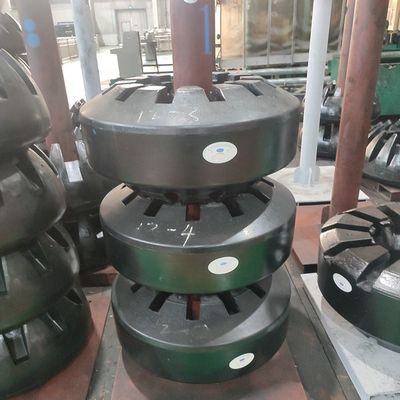

Tapered Rubber Bop Packing Element Unit 13 5/8"
Bop Packing Element is made up of synthetic rubber formulation and is geometrically designed for better performance in oilfield uses. Each of the packing elements is tested to ensure quality standards of packing elements. It includes both low and high-pressure complete shutoff tests. An annular packing element is important to control wellbore fluids during drilling operations. Each packing element is made predominantly with either NBR, CR or Natural Rubber and is ultimately the choice of the end user depending upon the usage. Bop Packing Element is made for long service life and sealing life without compromising the desirable qualities of the seal, such as open/close function, etc. We have become a reliable exporter of Packing elements in India, in all sizes and technical specifications.
Bop Packing Element Parameters
| working pressure MPa(psi) | Bore mm(in) | ||||||
| 179(7 1/16") | 228(9") | 279(11") | 346(13 5/8") | 527(20 3/4") | 540(21 1/4") | 750(29 1/2") | |
| 70(10000) | √ | √ | √ | ||||
| 35(5000) | √ | √ | √ | √ | √ | ||
| 21(3000) | √ | √ | √ | ||||
| 14(2000) |
√ |
||||||
| 4(500) | √ | ||||||
Bop Packing Element features
1. By API Spec.16A Standard
2. All the parts are original or interchangeable
3. Reasonable structure, easy operation, long life of plastic core
4. Adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in and shapes, better performance by combining with ran blowout preventer in the use.
