20 3/4" 3000 Psi Casing Drilling Spool Oilfield Equipment
Casing Drilling Spools are the parts that are often used in the oilfield for wellhead extension choke and kill manifold, etc. Application, it is designed and manufactured in accordance with API 6A standards, it usually has the same nominal end connections.
Casing Drilling Spool Parameters
| Top Flange | Bottom Flange | ||
| Size (inches) | Working Pressure (psi) | Size (inches) | Working Pressure (psi) |
| 11" | 2000 , 3000, 5000 | 11" | 2000, 3000 , 5000 |
| 13-5/8" | 2000 | 11" | 2000 , 3000, 5000 |
| 13-5/8" | 2000, 3000 , 5000 | ||
| 3000 | 11" | 3000 , 5000 | |
| 13-5/8" | 3000 , 5000 | ||
| 5000 | 11" | 5000,10000,15000 | |
| 13-5/8" | 5000,10000,15000 | ||
| 10000 | 11" | 5000,10000,15000 | |
| 13-5/8" | 5000,10000,15000 | ||
| 16-3/4" | 2000 | 11" | 2000 , 3000 |
| 13-5/8" | 2000 , 3000 , 5000 | ||
| 3000 | 11" | 3000 , 5000 | |
| 13-5/8" | 3000 , 5000 | ||
| 5000 | 11" | 5000,10000 | |
| 13-5/8" | 5000,10000 | ||
| 10000 | 11" | 10000 | |
| 13-5/8" | 10000 | ||
| 21-1/4" | 2000 | 13-5/8" | 2000 , 3000 , 5000 |
| 16-3/4" | 2000 , 3000 | ||
| 20-3/4" | 3000 | 13-5/8" | 3000 , 5000,10000 |
| 20-3/4" | 3000 | ||
| 21-1/4" | 5000 | ||
| 21-1/4" | 5000 | 13-5/8" | 5000,10000 |
| 16-3/4" | 5000 | ||
| 16-3/4" | 10000 | ||
Casing Drilling Spool FEATURES
1) Made from high-strength alloy and processed especially with heating treatment.
2) Designed and manufactured concerning API 6A technical specifications.
3) Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
4) All steel tanks are welded with stainless steel for long-term anti-corrosion.
5) Used for high-pressure drilling, in conjunction with a flat valve for preventing blowout and connecting BOP.

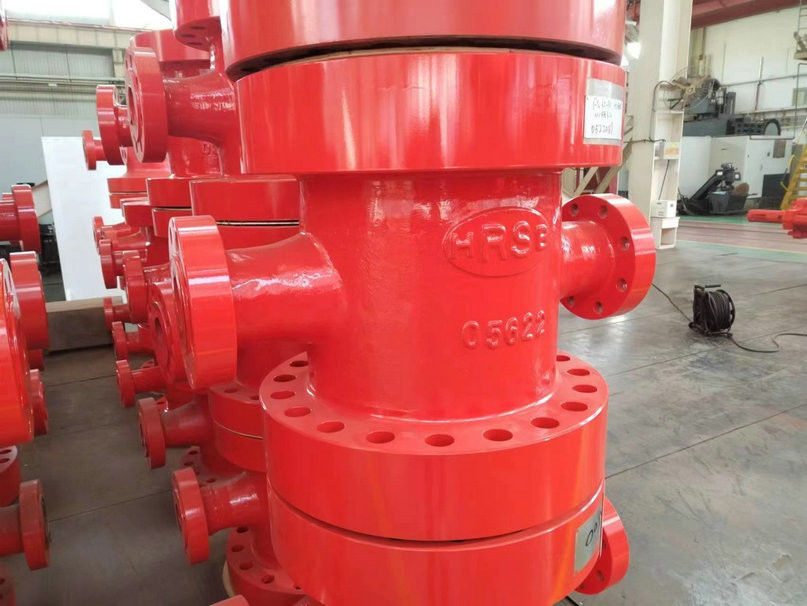

Casing Drilling Spool Pictures
