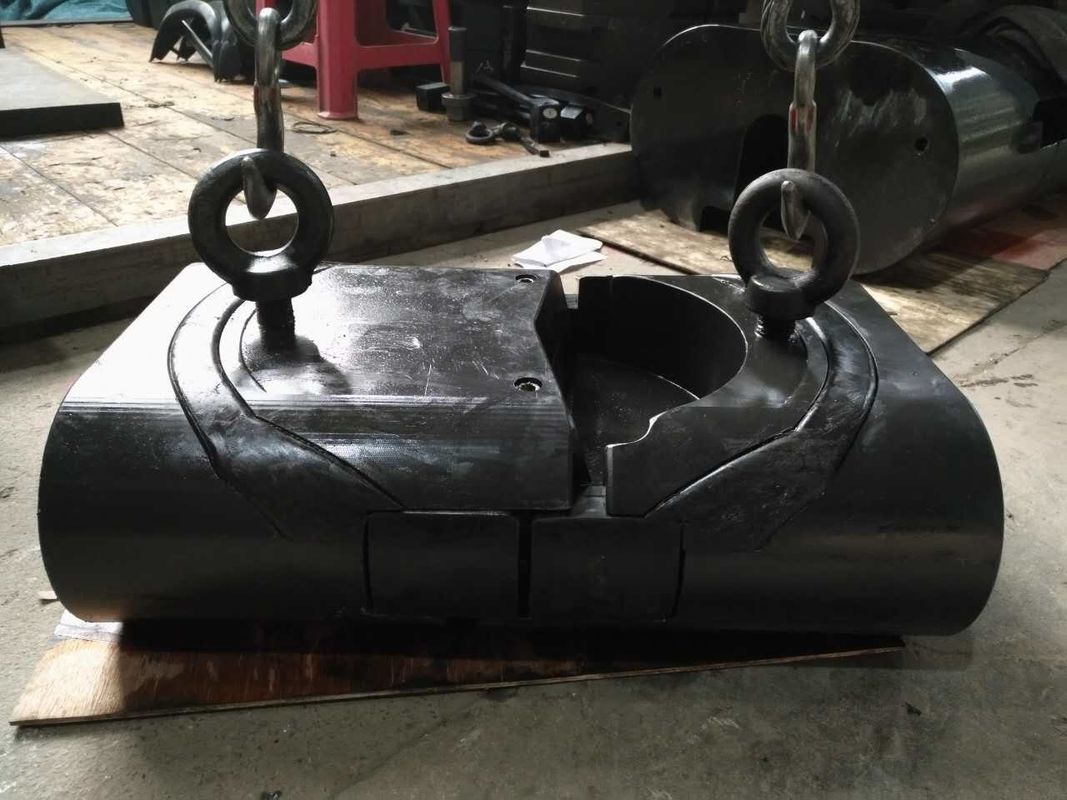

Blowout Preventer Annular BOP Packing Element Tapered Rubber

Large Image : Blowout Preventer Annular BOP Packing Element Tapered Rubber

Product Details:

Place of Origin:	China
Brand Name:	Hydril
Certification:	API 16A
Model Number:	13 5/8 inch

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 30000 set
Packaging Details:	Iron Case
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	5 sets per 3 months

Contact Now

Blowout Preventer Annular BOP Packing Element Tapered Rubber

Description

Name:	Annular BOP Packing Element	Size:	13 5/8 Inch
Rated Working Pressure:	10000 Psi	Rubber:	Tapered Rubber
Standard:	API 16A	Use:	Blowout Preventer
Highlight:	10000 Psi BOP Packing Element , Blowout Preventer Annular BOP Packing Element , Tapered Rubber Annular Packing Element

Blowout Preventer Annular BOP Packing Element Tapered Rubber

Operational Concept

High-pressure (10.5 Mpa) oil from control systems enters a closed cavity under a piston from the housing oil outlet when wells need to be sealed in case of kicks. This encourages the plastic core to move upward along the ball surface, bringing the bearing tendons closer together and moving the rubber between them to the center of the wellhead, sealing the drilling tools or completely sealing the wellhead. When the wellhead opens, hydraulic pressure from the housing oul inlet enters the open chamber above the piston and pushes it downward, allowing the plastic to reset with its own elasticity.

Annular BOP Packing Element Parameters

working pressure MPa(psi)	Bore mm(in)
working pressure MPa(psi)	179(7 1/16")	228(9")	279(11")	346(13 5/8")	527(20 3/4")	540(21 1/4")	750(29 1/2")
70(10000)	√		√	√
35(5000)	√	√	√	√		√
21(3000)			√	√	√
14(2000)						√
4(500)							√

Blowout Preventer Annular BOP Packing Element Tapered Rubber 0

Annular BOP Packing Element features

1. By API Spec.16A Standard

2. All the parts are original or interchangeable

3. Reasonable structure, easy operation, long life of plastic core

4. Adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in and shapes, better performance by combining with ran blowout preventer in the use.
