High pressure flexible acid fracturing hose

1 piece
MOQ
200-600USD
Price
High pressure flexible acid fracturing hose
Features Gallery Product Description Request A Quote
Features
Specifications
Application Scope: The Acidizing Fracturing, Sand Fracturing And Hydraulic Fracturing Pipelines In Well Completion Operations Deliver Water Based, Oil-based, Foam, Acid Based Fracturing Fluids Under High Pressure.
Inner Layer: Polymer Composite Material
Enhanced Layer: High Strength And Ultra Flexible Steel Wire Wrapped In Multiple Layers
Outer Rubber Layer: Wear-resistant And Weather Resistant Synthetic Rubber
Inner Diameter Type: Full Flow
Temperature Class: -20℃~+100℃(-4°F~+212°F)
Connection: Integral Union Or Integral Flange Or Other Forms
Highlight:

Flexible acid fracturing hose

,

High Pressure acid fracturing hose

Basic Infomation
Place of Origin: China
Brand Name: Jingbo
Certification: API 7K
Model Number: 2"-6", 15000psi-20000psi
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 100 Pieces per month
Product Description

Production Description:



1. High pressure flexible acid fracturing hose


Scope of application: acidizing fracturing, sand fracturing and hydraulic fracturing pipelines in well completion operations, and transporting water-based, oil-based, foam, acid based fracturing fluids under high pressure.



2. Product parameters



High pressure flexible acid fracturing hose 0



3.  American Southwest Research Institute Experiment:



     (1) Deformation and Hydrostatic Test,



     (2) Normal temperature and low temperature bending test



High pressure flexible acid fracturing hose 1



4. Advantages

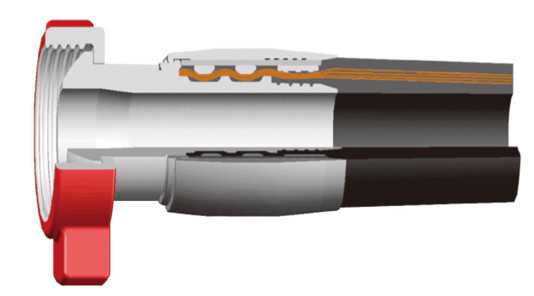

    (1) Equal diameter buckle type



    (2) Materials: Rubber plastic composite materials



    (3) enhancement layer: Super flexible high-strength steel wire winding



    (4) weight: 2” 15000psi—20kg/m



    (5) service life: more than 12 months



Conclusion: Lightweight, long lifespan, good flexibility, and easy assembly



5. On site application



High pressure flexible acid fracturing hose 2



High pressure flexible acid fracturing hose 3



High pressure flexible acid fracturing hose 4



High pressure flexible acid fracturing hose 5



High pressure flexible acid fracturing hose 6



High pressure flexible acid fracturing hose 7
