3000 Psi Drilling Spool Adapter Double Studded Stainless Steel

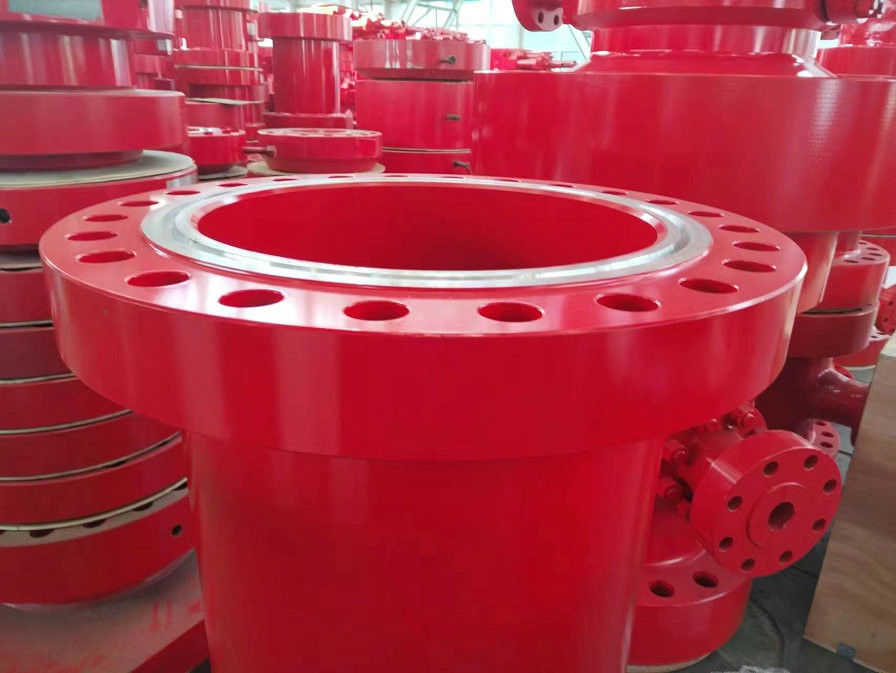

Large Image : 3000 Psi Drilling Spool Adapter Double Studded Stainless Steel

Product Details:

Place of Origin:	China
Brand Name:	Hebei Pantu
Certification:	API 6A
Model Number:	C.5.2

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negitionable
Packaging Details:	Iron Case
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	5 sets per 3 months

Contact Now

3000 Psi Drilling Spool Adapter Double Studded Stainless Steel

Description

Name:	Adapter Flange	Size:	13-5/8"
Rated Working Pressure:	10,000 Psi 3,000 Psi.	Processing Type:	Forging
Standard:	API 6A	Application:	Wellhead System
Highlight:	3000 Psi Double Studded Adapter , 3000 Psi Drilling Spool Adapter , Stainless Steel Drilling Spool Adapter

Adapter Flange Casing Spool 13-5/8" 10,000 Psi X 13-5/8" 3,000 Psi.

Double studded adapter flange is a combination of flanges of different sizes and pressure ratings. DSA for reliable and consistent performance on their production system. Our adapter flanges are in various sizes and pressure ratings as per customer's specified thickness, consistent with design considerations.

Adapter Flange Casing Spool Parameter

C.5.1	13-5/8” 10,000 psi x 13-5/8” 5,000 psi.
C.5.2	13-5/8” 10,000 psi x 13-5/8” 3,000 psi.
C.5.3	13-5/8” 10,000 psi x 13-5/8” 2,000 psi.
C.5.4	13-5/8” 10,000 psi x 11” 10,000 psi.
C.5.5	13-5/8” 10,000 psi x 11” 5,000 psi.
C.5.6	13-5/8” 10,000 psi x 11” 3,000 psi.
C.5.7	13-5/8” 10,000 psi x 11” 2,000 psi.
C.5.8	13 5/8” 10,000 psi x 7-1/16” 10,000 psi.
C.5.9	13 5/8” 10,000 psi x 7-1/16” 5,000 psi.
C.5.10	13-5/8” 10,000 psi x 7-1/16” 3,000 psi.
C.5.11	13-5/8” 10,000 psi x 7-1/16” 2,000 psi.
C.5.12	13 5/8” 10,000 psi x 9” 10,000 psi.
C.5.13	13 5/8” 10,000 psi x 9” 5,000 psi.
C.5.14	13 5/8” 10,000 psi x 9” 3,000 psi.
C.5.15	13 5/8” 10,000 psi x 9” 2,000 psi.
C.5.16	4-1/16” 10,000 psi x 3-1/16” 10,000 psi.
C.5.17	4-1/16” 10,000 psi x 3-1/8” 5,000 psi.
C.5.18	4-1/16” 5,000 psi x 3-1/8” 5,000 psi.
C.5.19	2- 1/16”, 5000 psi x 3 1/8” 5000 psi
C.5.20	2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi
C.5.21	3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi
C.5.22	3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi

FEATURES:

DSA Adapter Flange Casing Spool is the part that is often used in the wellhead system.
DSA Adapter Flange Casing Spool is designed and manufactured in accordance with API 6A standard.
DSA Adapter Flange Casing Spool is used when there is a restriction of space in the drill string. They provide an ideal solution by hooking up two different equipment of different size and pressure rating
Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
