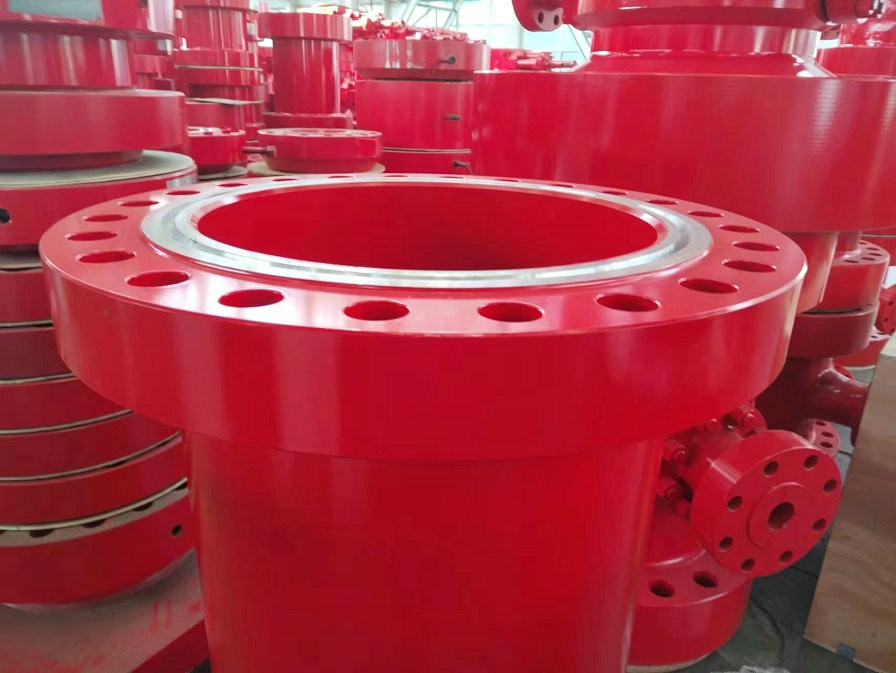

Adapter Flange Casing Spool 13-5/8" 10,000 Psi X 13-5/8" 3,000 Psi.
Double studded adapter flange is a combination of flanges of different sizes and pressure ratings. DSA for reliable and consistent performance on their production system. Our adapter flanges are in various sizes and pressure ratings as per customer's specified thickness, consistent with design considerations.
Adapter Flange Casing Spool Parameter
| C.5.1 | 13-5/8” 10,000 psi x 13-5/8” 5,000 psi. |
| C.5.2 | 13-5/8” 10,000 psi x 13-5/8” 3,000 psi. |
| C.5.3 | 13-5/8” 10,000 psi x 13-5/8” 2,000 psi. |
| C.5.4 | 13-5/8” 10,000 psi x 11” 10,000 psi. |
| C.5.5 | 13-5/8” 10,000 psi x 11” 5,000 psi. |
| C.5.6 | 13-5/8” 10,000 psi x 11” 3,000 psi. |
| C.5.7 | 13-5/8” 10,000 psi x 11” 2,000 psi. |
| C.5.8 | 13 5/8” 10,000 psi x 7-1/16” 10,000 psi. |
| C.5.9 | 13 5/8” 10,000 psi x 7-1/16” 5,000 psi. |
| C.5.10 | 13-5/8” 10,000 psi x 7-1/16” 3,000 psi. |
| C.5.11 | 13-5/8” 10,000 psi x 7-1/16” 2,000 psi. |
| C.5.12 | 13 5/8” 10,000 psi x 9” 10,000 psi. |
| C.5.13 | 13 5/8” 10,000 psi x 9” 5,000 psi. |
| C.5.14 | 13 5/8” 10,000 psi x 9” 3,000 psi. |
| C.5.15 | 13 5/8” 10,000 psi x 9” 2,000 psi. |
| C.5.16 | 4-1/16” 10,000 psi x 3-1/16” 10,000 psi. |
| C.5.17 | 4-1/16” 10,000 psi x 3-1/8” 5,000 psi. |
| C.5.18 | 4-1/16” 5,000 psi x 3-1/8” 5,000 psi. |
| C.5.19 | 2- 1/16”, 5000 psi x 3 1/8” 5000 psi |
| C.5.20 | 2- 1/16”, 2,000 psi x 3 1/8” 5,000 psi |
| C.5.21 | 3- 1/8”, 2,000 psi x 3 1/8” 5,000 psi |
| C.5.22 | 3- 1/8”, 3,000 psi x 3 1/8” 5,000 psi |
FEATURES:
