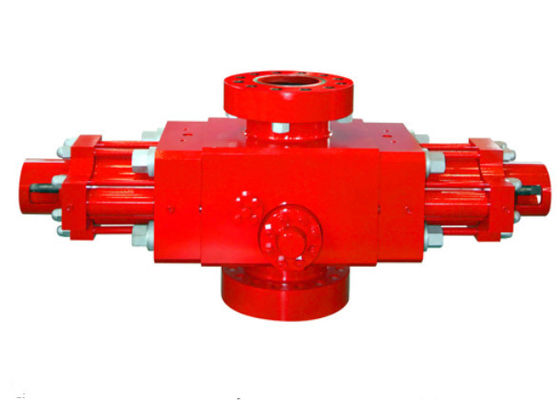

13 5/8"-5000psi Single Ram BOP, Forged, Cameron U Type, With Shear Bonnets
Features
1) Pressure part is forging, has better strength and impact toughness, can avoid the defects of the casting;
2) Intermediate flange adopts radial floating seal, open and close by hydraulic pressure, changing of ram is fast and convenient;
3) Equipped with tandem booster, compared with traditional ram bop with shearing capacity, the new one is smaller and function of which is constant;
4) Abundant reserve of ram packer, adopts self sealing;
5) Manual locking device is standard configuration, ensure the ram keep closing in case of hydraulic pressure loss;
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in below list)
| Item | Specification for Ram BOP | |||||||||||||
| Size and model | 7 1/16″-3000psi | 7 1/16″-5000psi | 7 1/16″-100000psi | 9″-3000psi | 9″-5000psi | 11″-3000psi | 11″-5000psi | 11″-10000psi | 13 5/8″-3000psi | 13 5/8″-5000psi | 13 5/8″-10000psi | 20 3/4″-3000psi | 21 1/4″-5000psi | 26 3/4”-3000psi |
| Bore (mm/in.) | 179.4 7 1/16 | 179.4 7 1/16 | 179.4 7 1/16 | 228.6 9 | 228.6 9 | 279.4 11 | 279.4 11 | 279.4 11 | 346.1 13 5/8 | 346.1 13 5/8 | 346.1 13 5/8 | 527 20 3/4 | 539.8 21 1/4 | 679.4 26 3/4 |
| Rated working pressure (MPa/psi) | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 21 3,000 |
| Hydrostatic pressure testing pressure (MPa/psi) | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 52.5 7,500 | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 70 10,000 | 31.5 4,500 |
| Hydraulic controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||||||
| Recommended hydraulic working pressure seal pipe (MPa/psi) | 1218~1522psi | |||||||||||||
| Volume for open one set rams | 41 L | |||||||||||||
| Volume for close one set rams | 43 L | |||||||||||||
| Outlet of hydraulic oil | NPT 1” | |||||||||||||
| Temperature grade of metal | T-20/250(-29℃～121℃) | |||||||||||||
| Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||||||
| Medium material contacting with well liquid | Per to NACE MR-01-75, meet API 16A Standard | |||||||||||||
