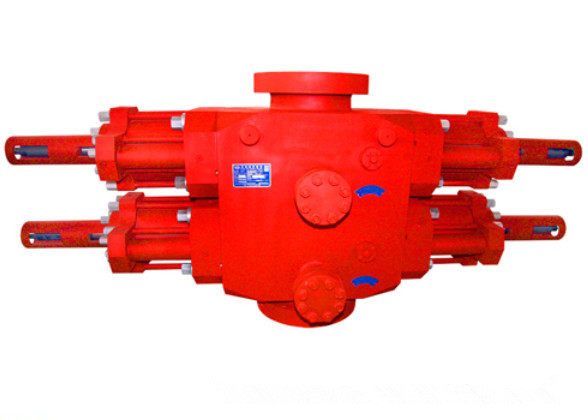

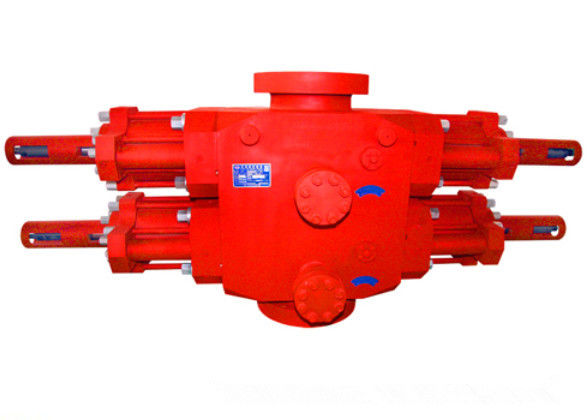

13 5/8"-5000psi Double Ram BOP, Forged, Cameron U Type, With Shear Bonnets
Size and Model for Ram BOP
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in below list)
| Item | Specification for Ram BOP | |||||||||||||
| Size and model | 7 1/16″-3000psi | 7 1/16″-5000psi | 7 1/16″-100000psi | 9″-3000psi | 9″-5000psi | 11″-3000psi | 11″-5000psi | 11″-10000psi | 13 5/8″-3000psi | 13 5/8″-5000psi | 13 5/8″-10000psi | 20 3/4″-3000psi | 21 1/4″-5000psi | 26 3/4”-3000psi |
| Boremm/in Bore (mm/in.) | 179.4 7 1/16 | 179.4 7 1/16 | 179.4 7 1/16 | 228.6 9 | 228.6 9 | 279.4 11 | 279.4 11 | 279.4 11 | 346.1 13 5/8 | 346.1 13 5/8 | 346.1 13 5/8 | 527 20 3/4 | 539.8 21 1/4 | 679.4 26 3/4 |
| Rated working pressure (MPa/psi) | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 21 3,000 |
| Hydrostatic pressure testing pressure (MPa/psi) | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 52.5 7,500 | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 70 10,000 | 31.5 4,500 |
| Hydraulic controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||||||
| Recommended hydraulic working pressure seal pipe (MPa/psi) | 1218~1522psi | |||||||||||||
| Volume for open one set rams | 41 L | |||||||||||||
| Volume for close one set rams | 43 L | |||||||||||||
| Outlet of hydraulic oil | NPT 1” | |||||||||||||
| Temperature grade of metal | T-20/250(-29℃～121℃) | |||||||||||||
| Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||||||
| Medium material contacting with well liquid | Per to NACE MR-01-75, meet API 16A 4th Edition Standard | |||||||||||||
key feature:
1) Shape Generally, the BOP body is similar to a square, in the middle there is vertical bore through which the pipes
can pass and the ram cavities in which the ram move in the horizontal direction.
2)Connection types The three connection types are studded, flange, clamped top and bottom connections. The sizes
of flanges, bolts, clamps and ring grooves all conform to API standards.
(2) Features of Ram Structure and Application
For the double-face ram, the upper-face ram and lower-face of the ram are exactly symmetrical. For various drilling
tools with different sizes, it only need to replace the semi-annular rubber sealing ring and ram compact, the other parts
can be interchanged. The single-face ram can not be turned over; the shearing ram can shear the drilling tool in the hole
to seal off the well. The ram BOP with variable bore rams can be used for the sealing off the casing and drilling tools
of various sizes within a certain range.
