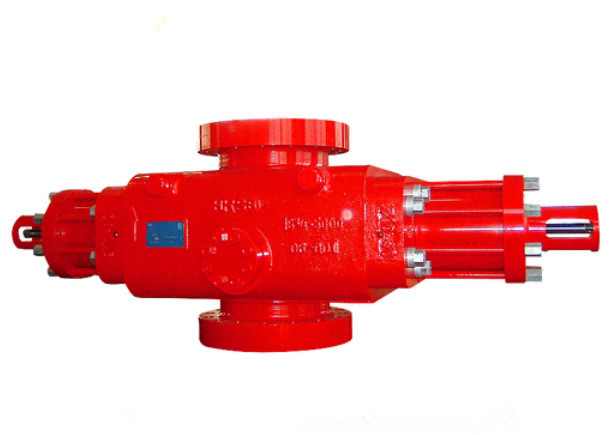

13 5/8"-5000psi Single Ram BOP, Casted, Shaffer Type
Single Ram BOP is an important component assembly of well control device. It is characterized by flexible switch, easy operation, safety in use and simple maintenance, etc. Our Single Ram BOP is designed as per the API 16A Specification, with good quality and best competitive price.
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in below list)
| Item | Specification for Ram BOP | |||||||||||||
| Size and model | 7 1/16″-3000psi | 7 1/16″-5000psi | 7 1/16″-100000psi | 9″-3000psi | 9″-5000psi | 11″-3000psi | 11″-5000psi | 11″-10000psi | 13 5/8″-3000psi | 13 5/8″-5000psi | 13 5/8″-10000psi | 20 3/4″-3000psi | 21 1/4″-5000psi | 26 3/4”-3000psi |
| 通径mm/in Bore (mm/in.) | 179.4 7 1/16 | 179.4 7 1/16 | 179.4 7 1/16 | 228.6 9 | 228.6 9 | 279.4 11 | 279.4 11 | 279.4 11 | 346.1 13 5/8 | 346.1 13 5/8 | 346.1 13 5/8 | 527 20 3/4 | 539.8 21 1/4 | 679.4 26 3/4 |
| Rated working pressure (MPa/psi) | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 70 10,000 | 21 3,000 | 35 5,000 | 21 3,000 |
| Hydrostatic pressure testing pressure (MPa/psi) | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 52.5 7,500 | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 52.5 7,500 | 105 15,000 | 31.5 4,500 | 70 10,000 | 31.5 4,500 |
| Hydraulic controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||||||
| Recommended hydraulic working pressure seal pipe (MPa/psi) | 1218~1522psi | |||||||||||||
| Volume for open one set rams | 36 L | |||||||||||||
| Volume for close one set rams | 40 L | |||||||||||||
| Outlet of hydraulic oil | NPT 1” | |||||||||||||
| Temperature grade of metal | T-20/250(-29℃～121℃) | |||||||||||||
| Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||||||
| Medium material contacting with well liquid | Per to NACE MR-01-75, meet API 16A 4th Edition Standard | |||||||||||||
