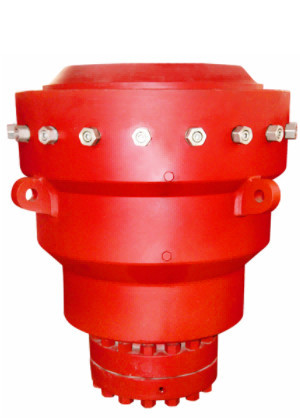

13 5/8"-5000psi Hydril Annular Bop Casted API 16A Shaffer Annular Bop
The annular preventer (also called bag type, spherical or universal preventer) is the most versatile piece of equipment on the BOP stack since it can close around the casing, drill pipe, drill collars, wireline, and even close an open hole. The rubber packing elements of the annular preventers, which allow this flexibility, are also subject to wear and abuse. Treated properly, the packing unit of the annular preventer has a long, reliable life span, but it can be destroyed in a very short time or very few closing cycles by improper use. Here, we will cover all annular blowout preventer BOP types as Cameron, Hydril & Shaffer BOP types that are used in drilling rigs.
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in below list)
| Item | Specification for Annular BOP | |||||||||
| Size and model | 7 1/16″-3000psi | 7 1/16″-5000psi | 9″-3000psi | 9″-5000psi | 11″-3000psi | 11″-5000psi | 13 5/8″-3000psi | 13 5/8″-5000psi | 20 3/4″-3000psi | 21 1/4″-5000psi |
| 通径mm/in Bore (mm/in.) | 179.4 7 1/16 | 179.4 7 1/16 | 228.6 9 | 228.6 9 | 279.4 11 | 279.4 11 | 346.1 13 5/8 | 346.1 13 5/8 | 527 20 3/4 | 539.8 21 1/4 |
| Rated working pressure (MPa/psi) | 21 3,000 | 35 5,000 | 21 3,000 | 35 5,000 | 21 3,000 | 35 5,000 | 21 3,000 | 35 5,000 | 21 3,000 | 35 5,000 |
| Hydrostatic pressure testing pressure (MPa/psi) | 42 6,000 | 70 10,000 | 42 6,000 | 70 10,000 | 42 6,000 | 70 10,000 | 42 6,000 | 70 10,000 | 31.5 4,500 | 70 10,000 |
| Hydraulic controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||
| Recommended hydraulic working pressure seal pipe (MPa/psi) | 1,218～1,522psi | |||||||||
| Max. working pressure seal well without pipe in (MPa/psi) | 10.5 1,500 | 17.5 2,500 | 10.5 1,500 | 17.5 2,500 | 10.5 1,500 | 17.5 2,500 | 10.5 1,500 | 17.5 2,500 | 10.5 1,500 | 17.5 2,500 |
| Recommended hydraulic working pressure seal well without pipe in (MPa/psi) | ≤10 .5/1,500 | |||||||||
| Open Max. oil volume (L) | 15 | 15 | 22.8 | 33 | 39 | 56 | 69 | 69 | 110 | 181 |
| Close Max. oil volume (L) | 21 | 21 | 34 | 42 | 50 | 72 | 94 | 94 | 173 | 241 |
| Lift weight by two lifting ring (t) | 16 | 16 | 16 | 25 | 25 | 25 | 32 | 32 | 32 | 64 |
| Outlet of hydraulic oil | NPT 1” | |||||||||
| Temperature grade of metal | T-20/250(-29℃～121℃) | |||||||||
| Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||
| Medium material contacting with well liquid | Per to NACE MR-01-75, meet API 16A 4th Edition Standard | |||||||||
