Api 16C Choke and Kill Line In Drilling Rig 2 1/2" Kill Hose

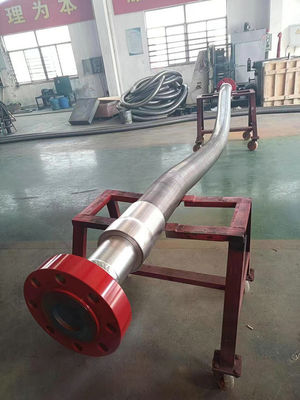

Rotary Hose In Drilling Rig is mainly used for conveying water-based or oil-based mud and other fluids in the working temperature of -30 °C to +82 °C. Rotary Hose In Drilling Rig is often used for oil fields, cement repairing, geological exploration, and water conveyance for coal excavation. It is composed of three parts: tube, reinforcement, and cover. The tube is made from NBR, which is resistant to abrasion, corrosion, and oils. The reinforcement is made from 2-8 layers of high tensile and high strength spiraled steel wire, making the hose have a solid structure and resistant to high pressure. The cover is made from high-quality synthetic rubber, mainly chloroprene rubber, making the hose resistant to abrasion, corrosion, cutting, weather, ozone, aging, and sunlight. The Rotary Hose In Drilling Rig has longer service life as a result.
Specification and basic parameters for Rotary Hose In Drilling Rig
| Inter dia.in mm(in) | Rated operating pressure in MPa(psi) | Test pressure in MPa(psi) | Min. burst pressure in MPa(psi) | Min. bending radius (mm) |
| 50.8(2) |
35.0(5 000) |
70.0(10 000) |
105.0(15 000) |
900 |
| 64(2 1/2) | 1000 | |||
| 76.2(3) | 1000 | |||
| 89(3 1/2) | 1100 | |||
| 101.6(4) | 1200 | |||
| 50.8(2) | 70.0(10 000) | 105.0(15 000) | 157.5(22 500) | 1000 |
| 63.5(2 1/2) | 1100 | |||
| 76.2(3) | 1150 | |||
| 89(3 1/2) | 1200 | |||
| 101.6(4) | 1250 | |||
| 50.8(2) |
105.0(15000) |
157.5(22500) |
236.25(33750) |
1000 |
| 63.5(2 1/2) | 1150 | |||
| 76.2(3) | 1200 | |||
| 50.8(2) |
138.0(20000) |
207.0(30000) |
310.0(45000) |
900 |
| 64(2 1/2) | 1100 | |||
| 76.2(3) | 1200 |
The information you may like to know before Payment:
1. Methods of Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
