3 1/8” flanged, 5,000 psi Coflexip hose for choke line with stainless steel protective flexible cover

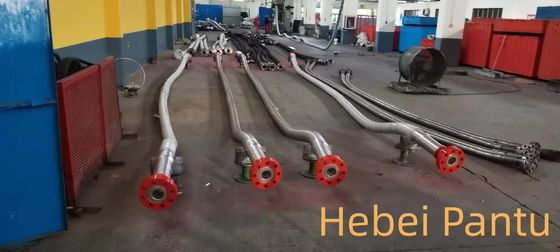

Large Image : 3 1/8” flanged, 5,000 psi Coflexip hose for choke line with stainless steel protective flexible cover

Product Details:

Place of Origin:	China
Brand Name:	Hebei Jingbo
Certification:	API 16C
Model Number:	3 1/8"-5000 psi

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	100-1000 USD
Packaging Details:	Iron case
Delivery Time:	7 days
Payment Terms:	L/C,T/T
Supply Ability:	1000 SET per month

Contact Now

3 1/8” flanged, 5,000 psi Coflexip hose for choke line with stainless steel protective flexible cover

Description

Connection:

Flanged

Material:

Stainless Steel Protective Flexible Cover

H2S:

H2S Trim, Meet NACE 0175 Standard

Temperature Class:

High Temp, 130 Deg C

Highlight:

flanged choke line hose

5000 psi Coflexip hose

stainless steel flexible cover hose

3 1/8” Flanged, 5,000 psi Coflexip Hose for Choke Line with Stainless Steel Protective Flexible Cover

Product Overview

The 3 1/8 inch Coflexip hose is designed for 5,000 psi working pressure and equipped with a flanged connection for secure installation in choke line systems. Manufactured to meet API 16C requirements, it ensures safe and efficient operation in well control and drilling applications. The hose is fitted with a stainless steel protective flexible cover, which enhances durability by providing superior resistance against abrasion, mechanical damage, and harsh oilfield conditions. Its flexibility combined with reinforced strength makes it a dependable choice for critical choke line operations both onshore and offshore.

Key Features

Manufactured to API 16C standards for well control equipment
Designed for high pressure, high temperature, and harsh drilling environments
Multi-layer spiral steel wire reinforcement for superior strength
Inner tube resistant to oil, acid, H₂S, and abrasive drilling fluids
Flame-resistant and anti-static outer cover for safety in hazardous zones
Available with flanged, hub, or hammer union connections

Applications

Choke and kill manifolds
Surface blowout preventer (BOP) stack connections
High-pressure well control and circulation systems
Onshore and offshore drilling rigs

Technical Specifications

Inner Diameter	[Insert size, e.g., 2" - 4"]
Working Pressure	[Insert, e.g., up to 15,000 psi]
Temperature Range	[Insert, e.g., -30°C to +120°C]
Connection Types	Flange, hub, hammer union, or customized
Certification	API 16C, ISO 9001

Quality Assurance

Every choke and kill line is fully tested for pressure, flexibility, and safety to ensure compliance with international standards and customer requirements.
