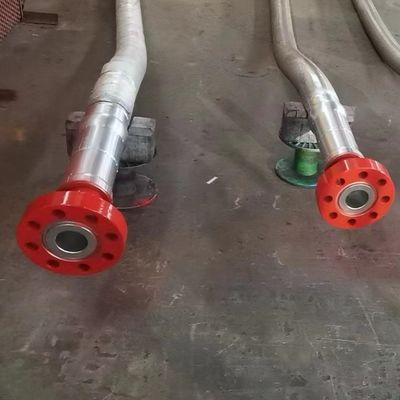

API 16C Standard High Temp Choke And Kill Lines 3 1/8 Inch 5000 Psi

API 16C Coflexip Hose 3 1/8 Inch -5000 Psi

Coflexip Hose Specifications:

Product Name: API 16C Coflexip Hose 3 1/8 Inch -5000 Psi

ID/Size: 2″, 2-1/2″, 3″, 3-1/16″, 3-1/2″, 4″

Working Pressure: 5000PSI(5K), 10000PSI(10K), 15000PSI(15K)

Length: As per customers’ requirements

Working Temperature Range: -20°C ~ +121 °C

End Fittings/End Connections/Couplings: API Flanges, Hammer Union, NPT Thread, API Male End, Unibolt, Clamp Connection Type or as per customers requirements

Tube(Lining): Nitrile Rubber, Fluoroelastomer. Featuring oil resistance, abrasion resistance, Corrosion Resistance, and up to 20% H2S.

Reinforcement: 2-8 layers of single high strength steel wire spiral.

Cover: Neoprene, featuring Oil Resistance, Abrasion Resistance, Weather Proof and Anti-Aging.

Fire-Resistant Layer: Fire-Resistant Synthetic Rubber

External Braided Steel Wire Layer: braided by stainless steel wire

Outer Protective Layer: Stainless Steel Sheathed/Armored.

Options/Attachment: Accessories such as safety clamps and chain/hose lift eyes are available upon request.

3 1/8” flanged, 5,000 psi Coflexip hose for choke line with stainless steel protective flexible cover of sufficient length so as to connect to mud cross to choke manifold as single piece, High Temp, 130 deg C, liner suitable for sour service, acid and cementing service. Choke line hoses with H2S Trim end fittings confirming to NACE MR-01/75 requirements and Lines are API-16C monogrammed, with Flanges per API 6A. Manufacturer: Technip / Contitech / Gates / Flexi France or equivalent from manufacturer having API-16C certificate.
