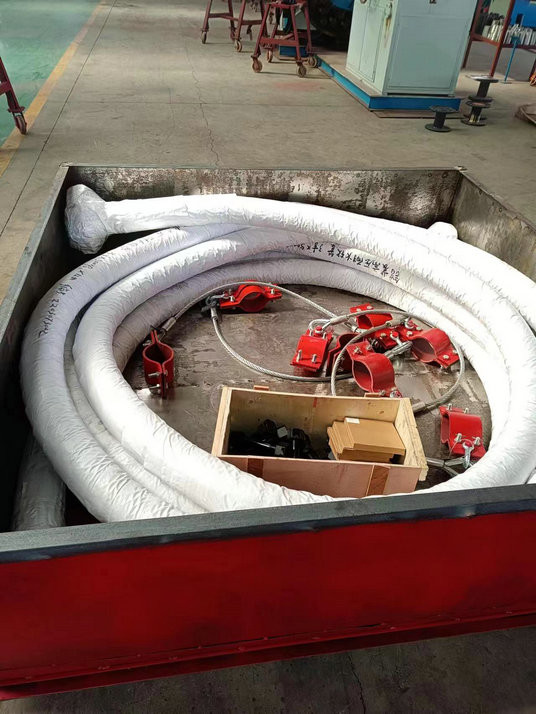

4 Inch 5000psi Coflexip Hose Ozoen Resistance With Flanges Both End API 16C

4 Inch 5000psi Coflexip Hose Ozoen Resistance With Flanges Both End API 16C
4 Inch 5000psi Coflexip Hose Ozoen Resistance With Flanges Both End API 16C

Large Image :  4 Inch 5000psi Coflexip Hose Ozoen Resistance With Flanges Both End API 16C

Product Details:
Place of Origin: China
Brand Name: Hebei Jingbo
Certification: API 16C
Model Number: Coflexip Hose
Payment & Shipping Terms:
Minimum Order Quantity: 1 set 10m length
Price: USD 5000-8000 per set
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 20 sets per 1 months
Contact Now

4 Inch 5000psi Coflexip Hose Ozoen Resistance With Flanges Both End API 16C

Description
Name: Coflexip Hose Standard: API Spec 16C
Pressure: 5000psi Size: 4 Inch ID
Reinforcement: Multiple Layers Of Textile Fabric And Steel Cable End: Flanges Both End
Highlight:

Ozoen Resistance Coflexip Hose

,

4 Inch Coflexip Hose

4 Inch 35mpa Coflexip Hose With Flanges Both End



Coflexip Hose Feature:



1. Excellent resistance to high temperature
2. Weathering and ozoen resistance
3. High abrasion resistant cover
4. Anti aging,long service life



Coflexip Hose Coupling :



Swaged couplings,full range of couplings are available,such as hammer union,flanges,hubs,male thread etc.





Specification and basic parameters for Coflexip Hose



Inter dia.in mm(in) Rated operating pressure in MPa(psi) Test pressure in MPa(psi) Min. burst pressure in MPa(psi) Min. bending radius (mm)
50.8(2)









35.0(5 000)









70.0(10 000)









105.0(15 000)

 900
64(2 1/2) 1000
76.2(3) 1000
89(3 1/2) 1100
101.6(4) 1200
50.8(2) 70.0(10 000) 105.0(15 000) 157.5(22 500) 1000
63.5(2 1/2) 1100
76.2(3) 1150
89(3 1/2) 1200
101.6(4) 1250
50.8(2)





105.0(15000)





157.5(22500)





236.25(33750)

 1000
63.5(2 1/2) 1150
76.2(3) 1200
50.8(2)





138.0(20000)





207.0(30000)





310.0(45000)

 900
64(2 1/2) 1100
76.2(3) 1200



The information you may like to know before Payment:



1. Methods of Payment:

T/T (Telegraphic Transfer) or L/C at sight



2. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.



3. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.
